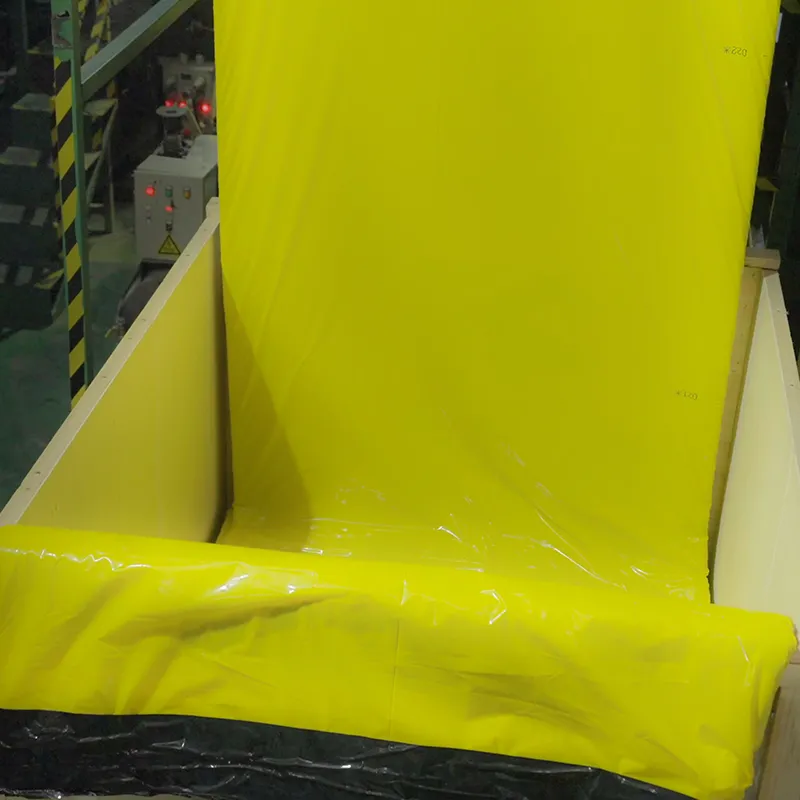

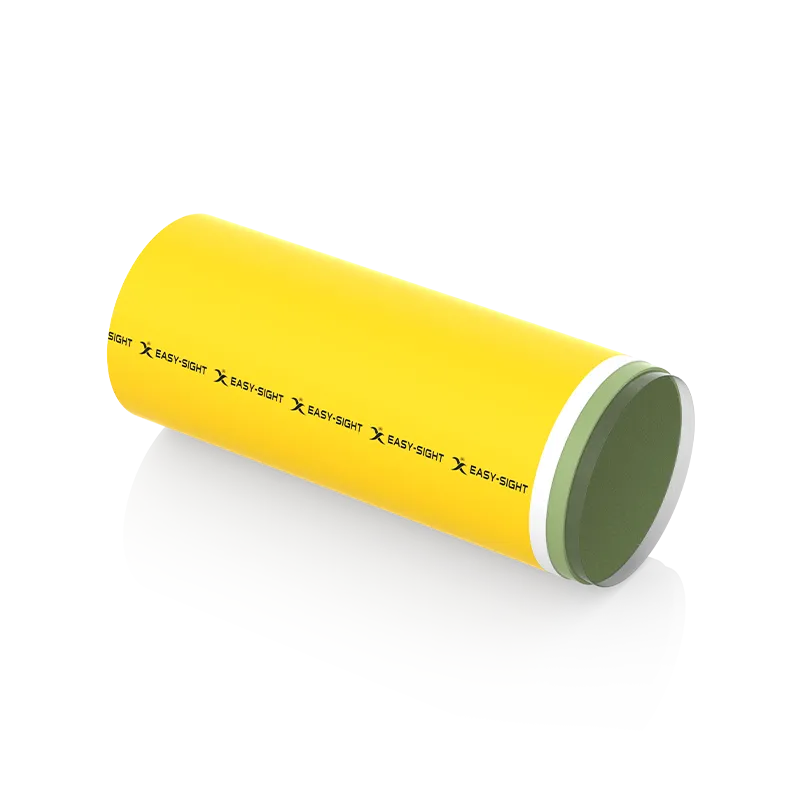

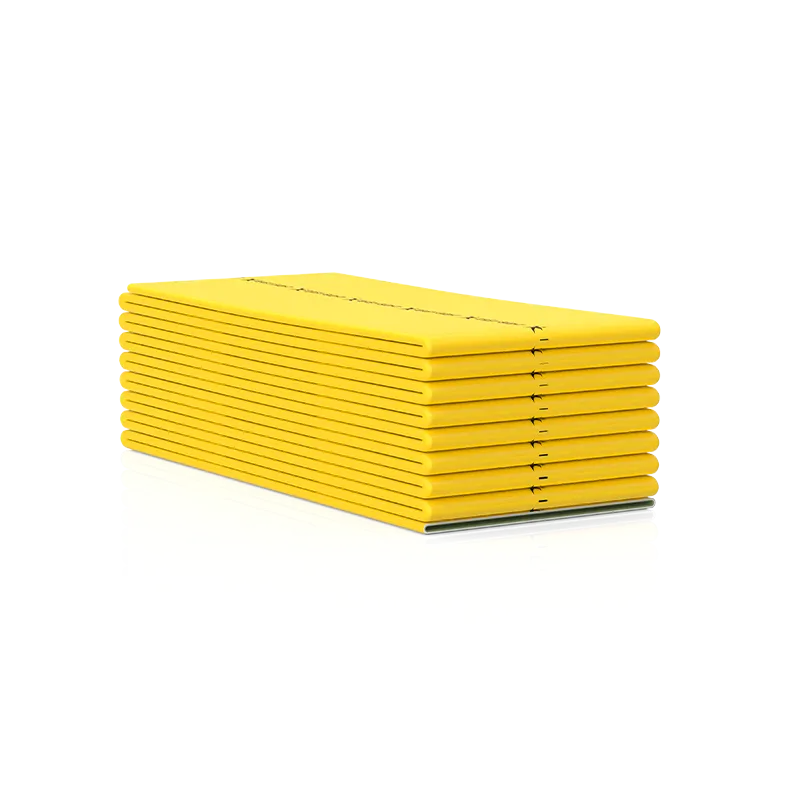

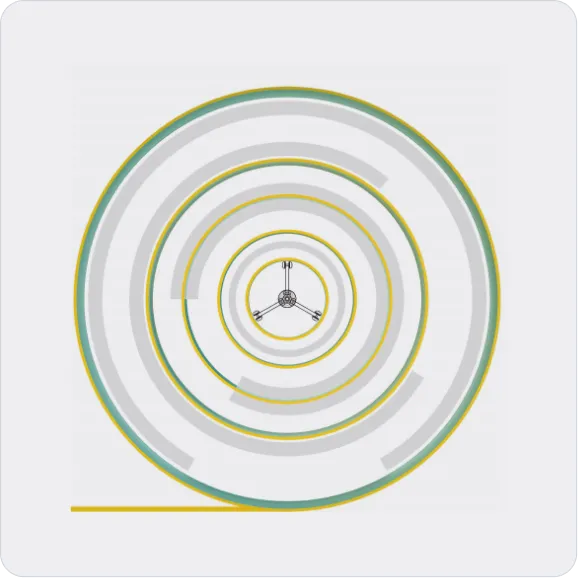

ZY-86 UV-CIPP LINER

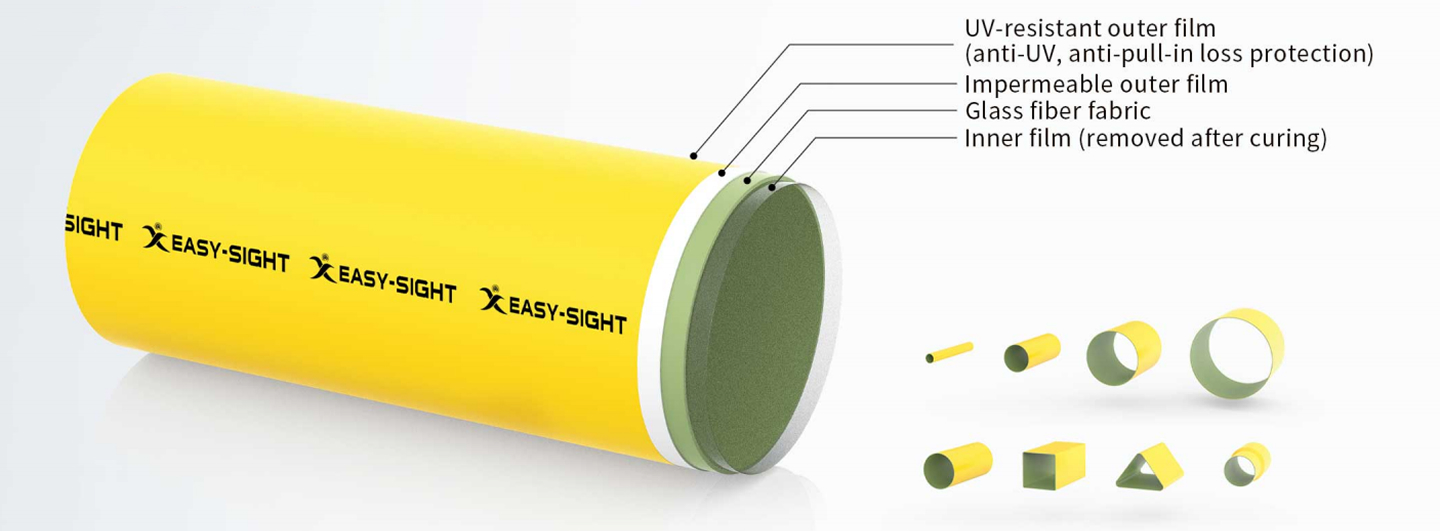

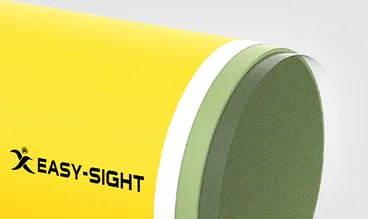

ZY-86 UV-Curing Liner

Pipe Technical Specifications

ZY-86 UV-CIPP Liner Advantages

• Leading Crattsmanship

  Own production base, adopts indus try-leading process standards; all procedures undergo strict inspection to ensure high-quality rehabilitation materials.

  01

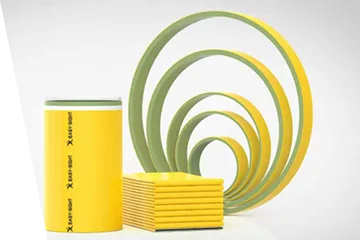

• Customized production

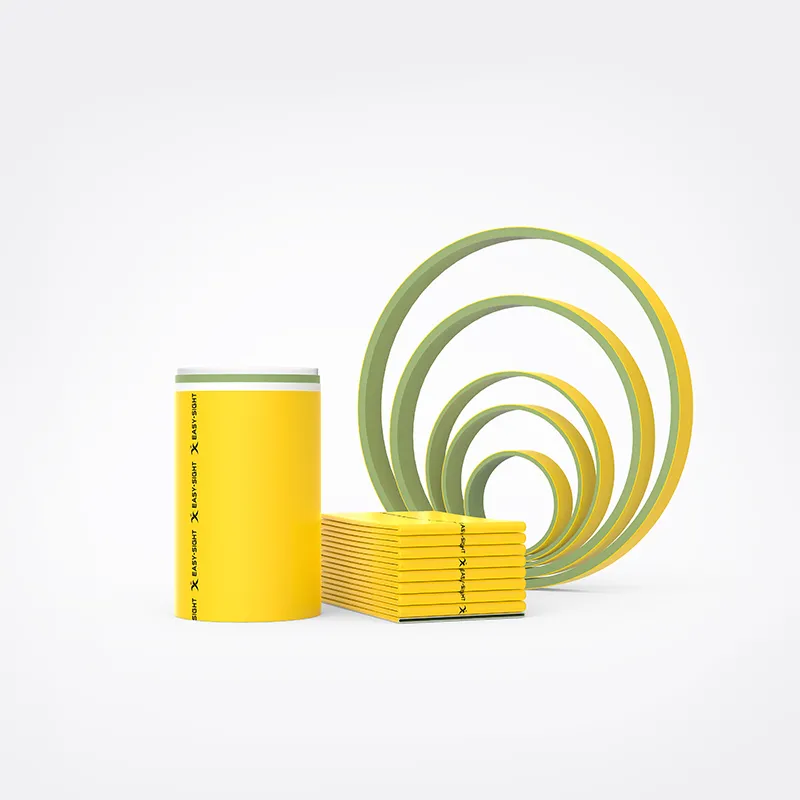

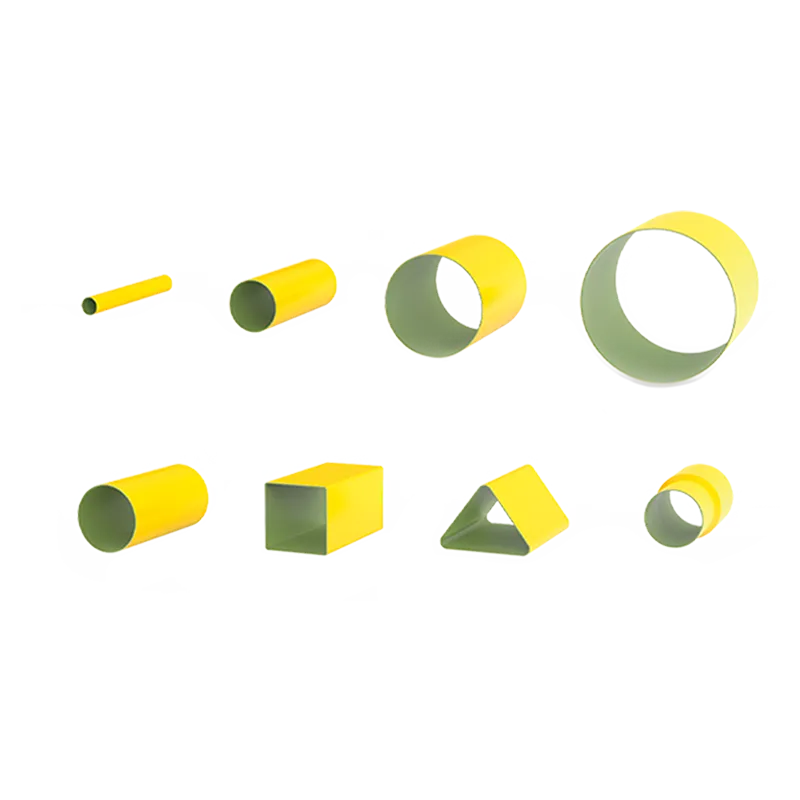

  Can customize UV Liners from DN150 to DN2200 and thickness from 3mm to 18mm according to different diameter requirements. Single repair length can reach 300 meters.

  02



• Authorltative veritication

  Produced according to industry standards. Multiple performance indicators such as flexural strength, tensile strength, and flexura  modulus are certified by authoritative bodies, complying with industry standards.

  03

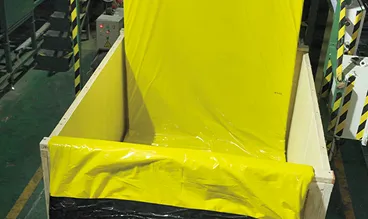

• Easy Storage

  Liners can be stored for 90 days in a dark, ventilated environment at room temperature (-5-30°C),and for 180 days in a constant-temperature cold storage (5-18°C).

  04



Why Choose Easy-Sight ZY-86 UV Liner?

•

  Rigorous Raw Material Selection

  Strict selection based on standards; all raw materials pass third-party lab certification. Performance indicators of outer/inner film, resin, and glass fiber all meet requirements.


•

  Innovative R&D, Leading Craftsmanship

  High-standard R&D lab with comprehensive testing equipment; production lines feature "patented" designs for high efficiency. Strict control at every production stage ensures product quality.


•

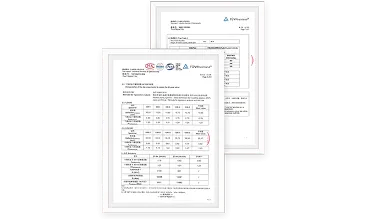

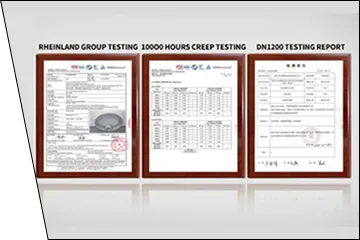

  Perfect reporting system

  Authoritative Verification: Produced according to industry standards. The properties of the material have been authoritatively certified, complying with industry standards.


•

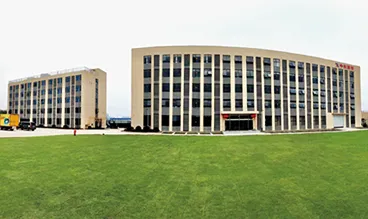

  Strong production capacity

  4 dry material production lines, 6 wet material production lines; combined monthly workshop capacity approx.50 km. Two self-owned warehousing/logistics warehouses totaling2500 sqm.


•

  Full Rehabilitation Process Control

  High-standard R&D lab with comprehensive testing equipment; production lines feature "patented" designs for high efficiency. Strict control at every production stage ensures product quality.


•

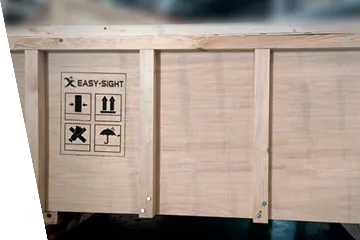

  Concierge Service

  Order shipped the next business day.7x24 professional after-sales service. On-site expert guidance to ensure effective material use and standardized construction.



APPLICATION CASES

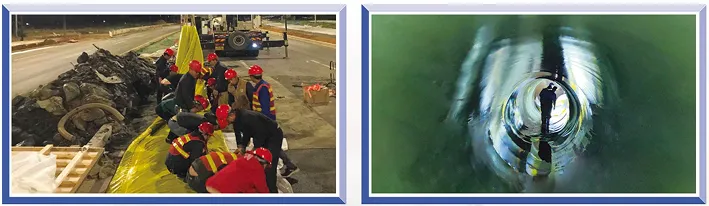

• 01 Large Diameter Pipeline UV-CIPP Rehabilitation

  Project Name: Zhejiang Province, Ningbo City Sewage Pipeline Renovation Project

  Project Description: DN1900 Reinforced concrete municipal sewage pipe, manhole depth 7m, repair length 36m, design liner thickness 15mm.

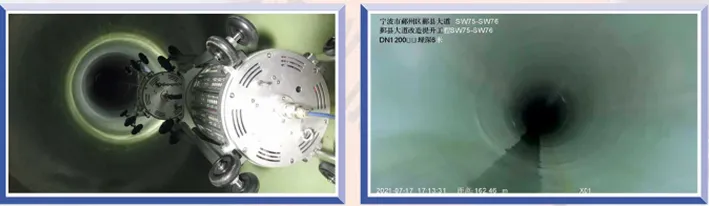

• 02 Long-Distance Pipeline UV-CIPP Rehabilitation

  Project Name: Zhejiang Province, Ningbo City Sewage Pipeline Rehabilitation Project

  Project Description: DN1200 Reinforced concrete municipal sewage pipe, repair length 170m. CCTV inspection revealed cracks and leaks.

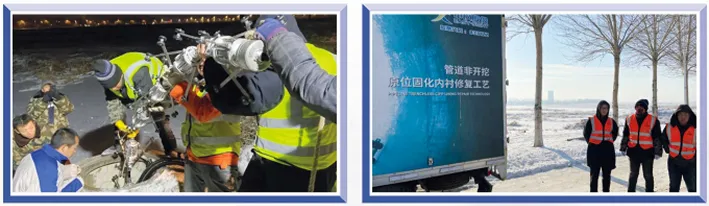

• 03 UV-CIPP Rehabilitation in Cold Regions

  Project Name: Jilin Province, Changchun City Sewage Pipeline Rehabilitation Project

  Project Description: Temperature -20°C, DN800 Reinforced concrete municipal sewage pipe, repair length 40m. CCTV inspection revealed dislocations and leaks.

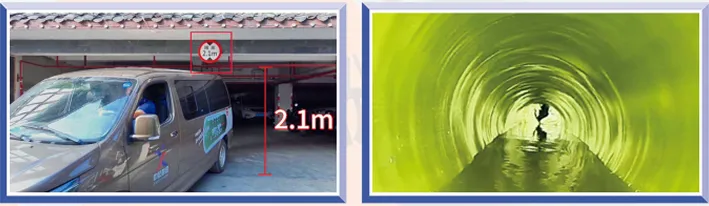

• 04 UV-CIPP Rehabilitation in Confined Spaces

  Project Name: Zhangjiajie Scenic Area Sewage Pipeline Trenchless Rehabilitation

  Project Description: Pipe diameter DN500mm. Due to limited space preventing access for standard large rehabilitation vehicles, the project utilized Easy-Sight's X120-UV-MINI UV-CIPP rehabilitation system and ZY-86 UV Liner.

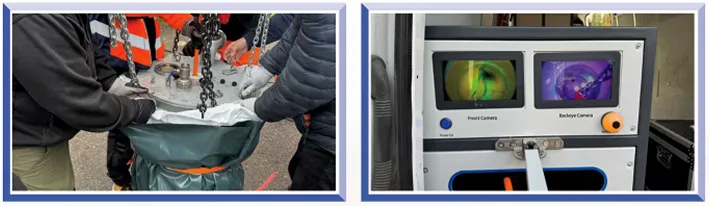

• 05 Manhole UV-CIPP Rehabilitation

  Project Name: Finland Manhole Trenchless Rehabilitation

  Project Description: Manhole diameter DN500mm in Finland. Utilized Easy-Sight's X120-UV-JX UV-CIPP rehabilitation system and ZY-86 UV Liner.

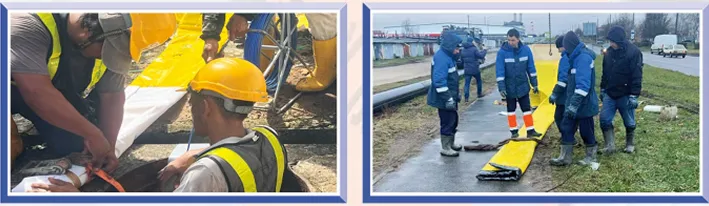

• 06 ​​Trenchless Rehabilitation of Overseas Sewer Pipelines​

  Project Name: Malaysia and Russia Drainage Pipeline Trenchless Rehabilitation

  Project Description: The ZY-86 UV-CIPP Liner has been applied in diverse climates—from Malaysia to Russia, and from Australia in Oceania to Canada in North America. This demonstrates the widespread international adoption of Easy-Sight's rehabilitation materials, with a growing number of overseas customers favoring Easy-Sight's trenchless products.

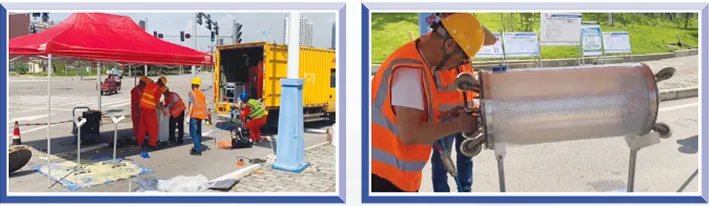

• 07 High-Efficiency UV-Cured Spot Repair Project

  Project Name: Chongqing Liangping High-Tech Zone UV Spot Repair Project

  Project Description: A renowned state-owned enterprise conducting sewage pipeline rehabilitation in Chongqing City discovered multiple point defects. Using Easy-Sight's Local Repair UV Liner and the X120-D2 Controllable Point Repair System, they repaired 11 defect points within 5 hours, significantly enhancing repair efficiency.

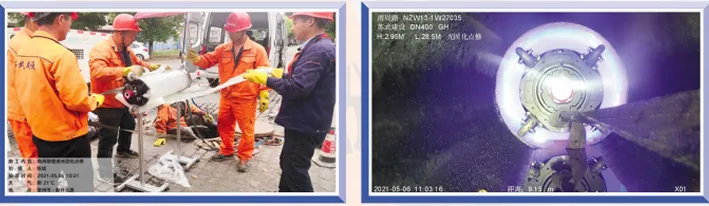

• 08 Rapid UV-Cured Spot Repair Project

  Project Name: Changzhou Suwu Construction UV Spot Repair Project

  Project Description: A single unit repairs over 20 defect points per day, making it an excellent choice for localized repairs within DN600. After rehabilitation, a new smooth and even layer is formed on the pipe interior wall, with a service life exceeding 30 years.
