X120-UVG Drainage Pipeline Rehabilitation System

X120-UVG Drainage Pipeline Rehabilitation System

Utilizing advanced UV curing technology, it is designed for trenchless UV rehabilitation of municipal pipelines ranging from DN200 to DN2000mm.

Inquire Now

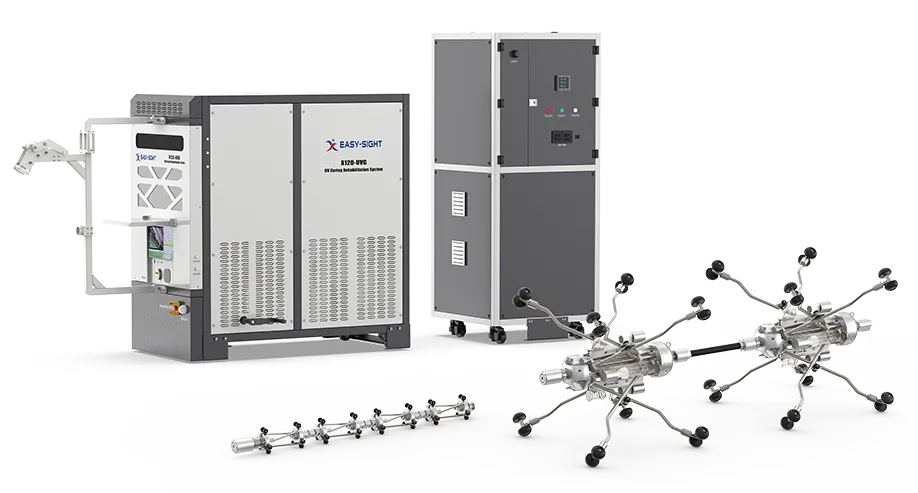

Key Features

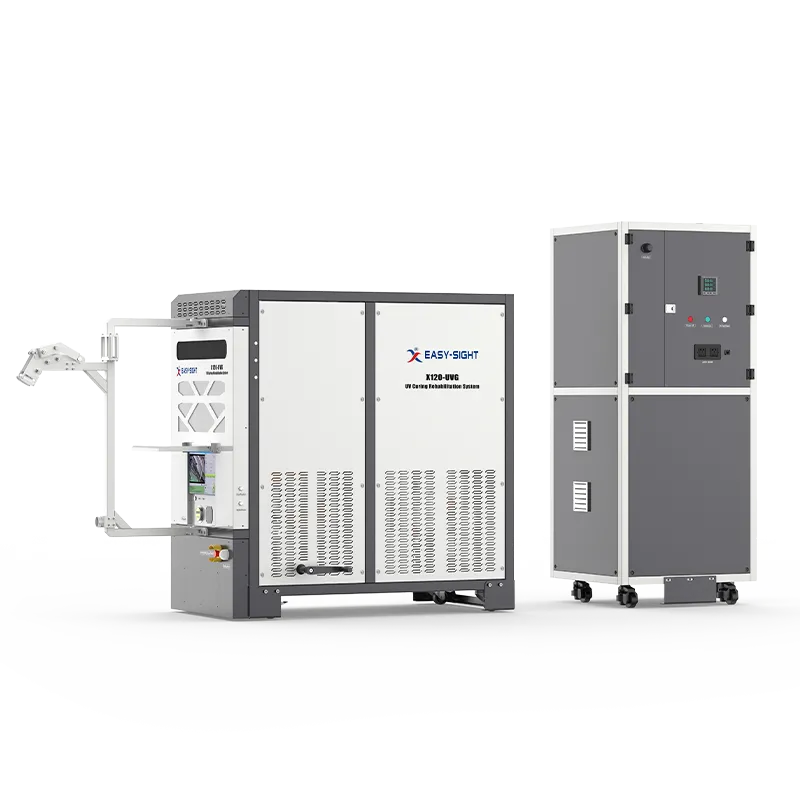

Mobile control cabinet
Standard 170m cable
Monitoring main screen

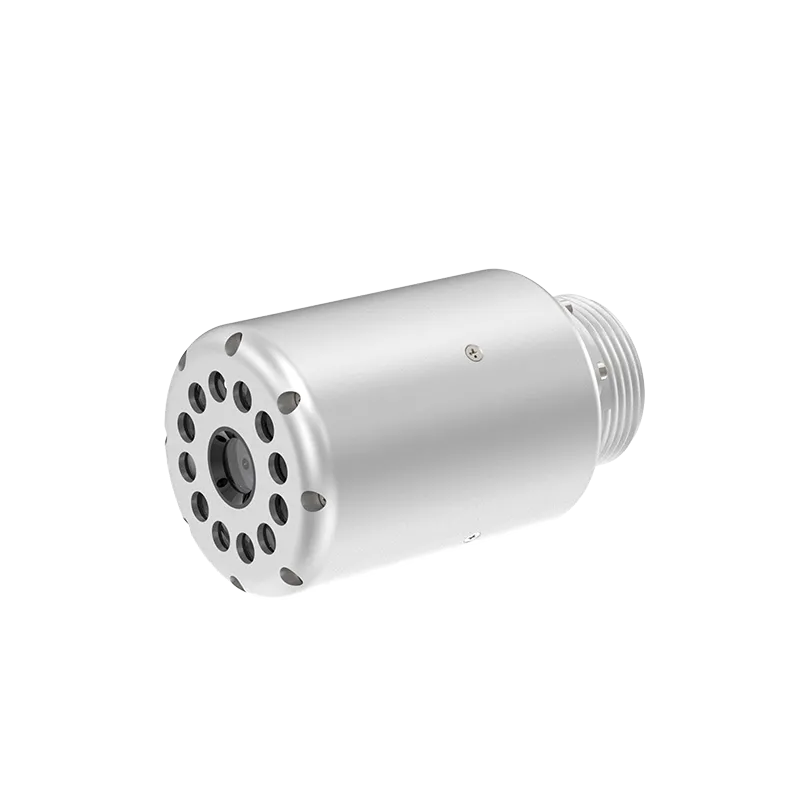

200MP high-definition camera
2 large light bars (supporting 8 lamps), each lamp rated 1200–1500W adjustable;
8 small light bars (total 8 lamps), each lamp rated 400–600W adjustable.

Product Overview

The X120-UVG is a drainage pipeline rehabilitation system equipped with a mercury lamp source, integrating a generator, air blower, power system, control system, cable reel, UV lamp frame, camera, sealing head, and air pipes. Utilizing advanced UV curing technology, it is designed for trenchless UV rehabilitation of municipal pipelines ranging from DN200 to DN2000mm.

Key Technical Features:

1. Precise pipe diameter matching ensures the lamp frame remains centered during curing, enhancing rehabilitation efficiency.

2. Integrated front/rear video monitoring and control system with comprehensive data display, enabling real-time recording of operational parameters and automatic generation of engineering reports.

3. Simplified internal design of lamp frames (both large and small types) with only light sources and temperature sensors, ensuring stable performance.

4. Flexible lamp frame configuration: large and small frames can be connected interchangeably, supporting multi-segment combinations and diverse operational modes.

5. Expandable compatibility with waterproof LED lamp frames.

6. Portable tablet-based control system for intuitive operation.

Main Parts

Cable Reel

1. Cable Length: ≥150m (Waterproof, Abrasion-resistant, High-temperature resistant, Acid/Alkali resistant, Corrosion-resistant); 200m optional
2. Counting: High-precision encoder with 1mm resolution
3. Winding/Unwinding: Manual or automatic operation
4. Weight: Approx. 550 kg

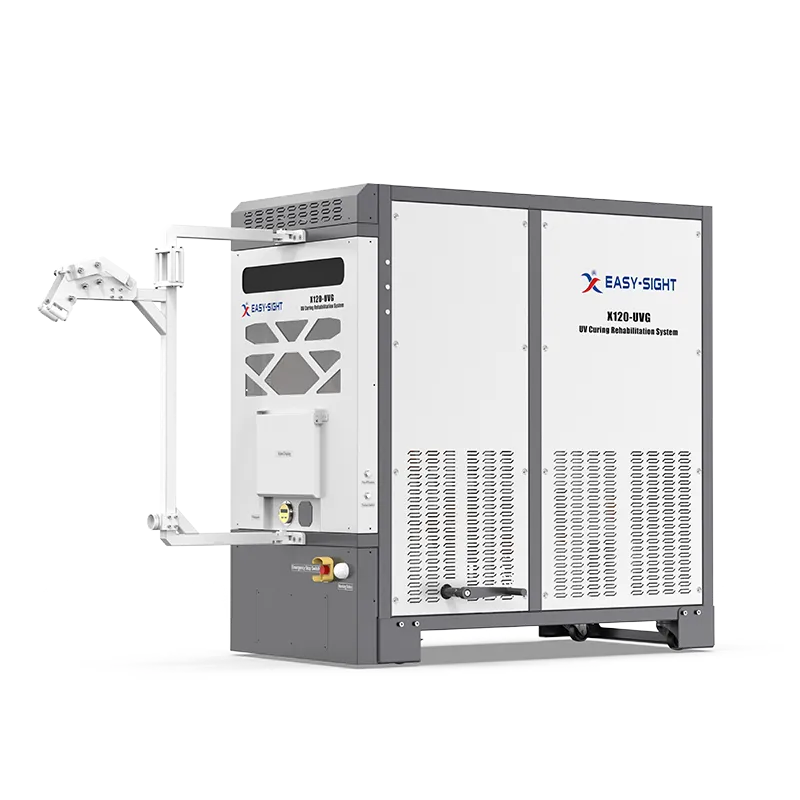

Main Unit

1. Display Screen: 1 unit (1 screen, switchable between front and rear view)
2. Main Control System: Android tablet (capable of simultaneous front/rear video display)
3. Parameter Setting: Configurable curing parameters, including repair pipe diameter and material thickness
4. Pressure Control: Manual adjustment of blower output
5. Curing Control: Automated repair based on set parameters and speed (automatic cable winding/layering)
6. Image Acquisition: Real-time display using HD analog cameras
7. Indication Functions: Displays repair pressure and speed
8. Expandable Configuration: Supports add-on waterproof LED lamp racks
9. Weight: Approx. 240 kg

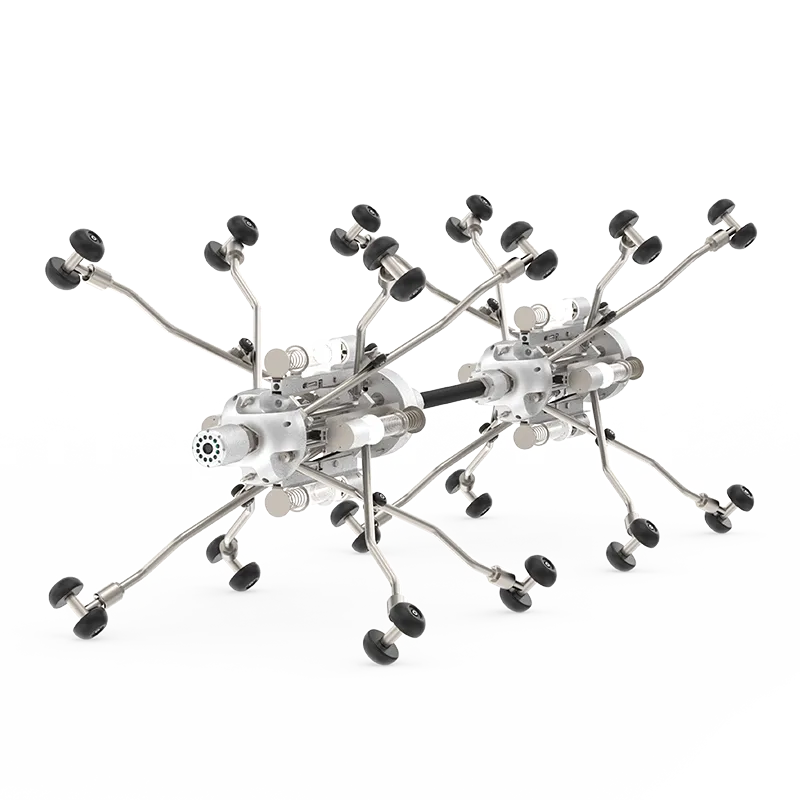

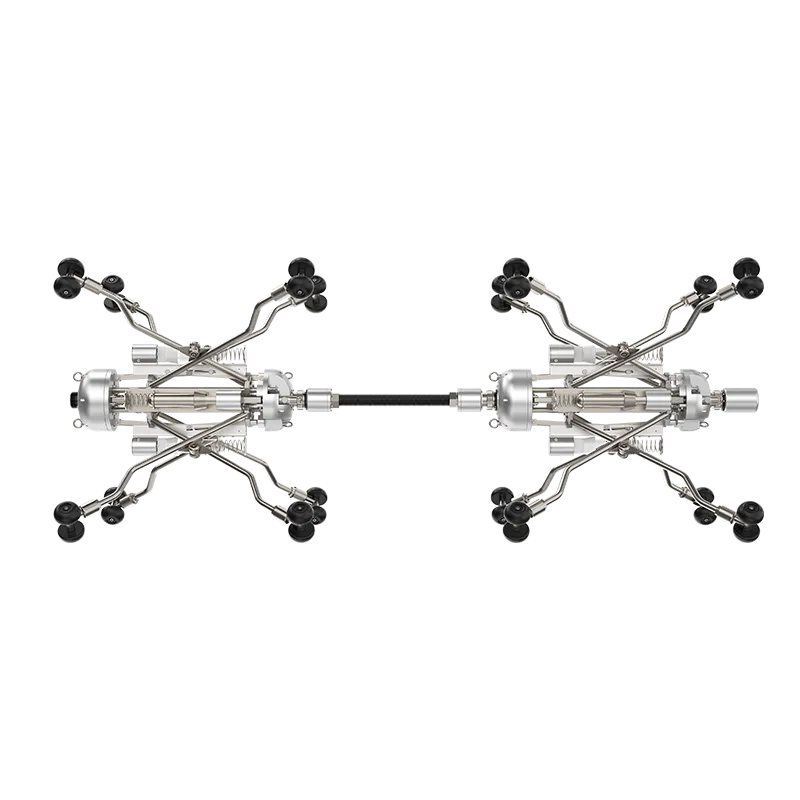

Large Lamp Rack

1. Light Source: Mercury Lamp
2. Configuration 1: 2-section rack (8 lamps total), single lamp power adjustable 1000W-1200W; mechanically adjustable for pipe diameters DN800-DN1600 mm
3. Configuration 2: 2-section rack (8 lamps total), single lamp power adjustable 1200W-1500W; mechanically adjustable with extendable legs for pipe diameters DN800-DN2000 mm
4. Assembly: The two sections can be assembled in any order
5. Lift Mechanism: Optional electric lift of lamps with support legs for diameters DN800-DN2000 mm
6. Reflector: Equipped with reflector plates below the light sources
7. Arrangement: Light sources are installed in a staggered pattern

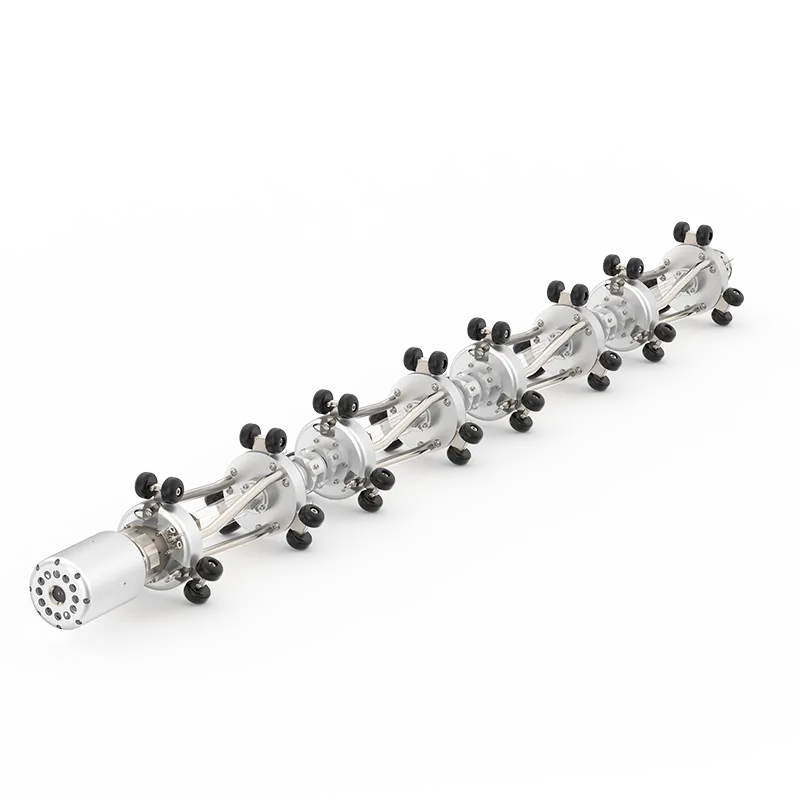

Small Lamp Rack

1. Light Source: Mercury Lamp
2. Power: 8-section rack (8 lamps total), single section power adjustable 400W-600W
3. Applicable Pipe Diameter: DN200-DN700 mm, adjusted via plug-in support legs
4. Assembly: Two groups (4 sections each) can be assembled in any order
5. Leg Change: Quick plug-in replacement of support legs for diameters DN200-DN700 mm
