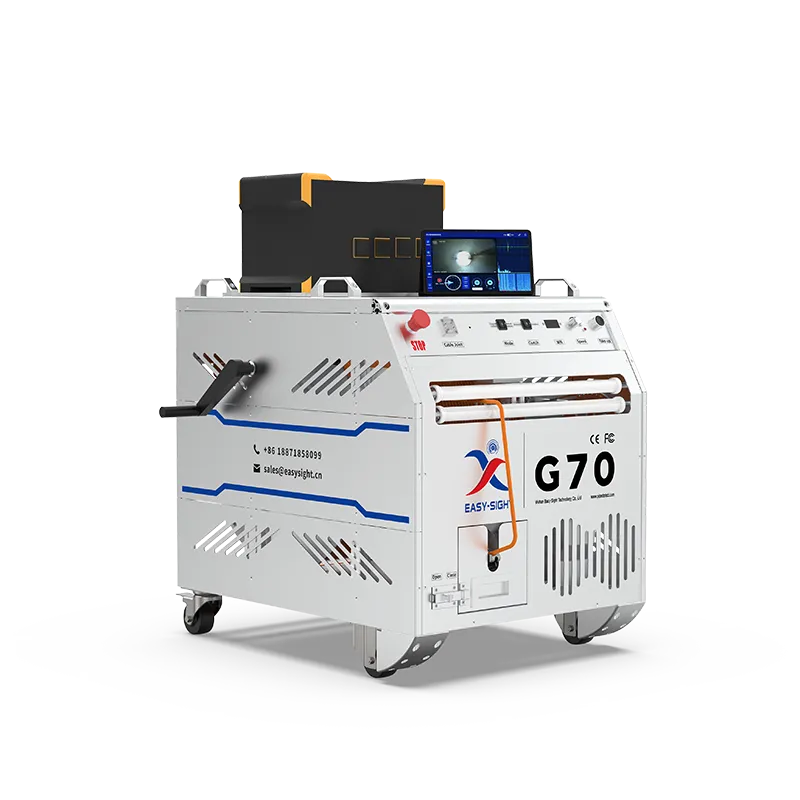

G70-U2 Umbrella-Type Water Supply Pipeline Internal Inspection Robot

Product Overview

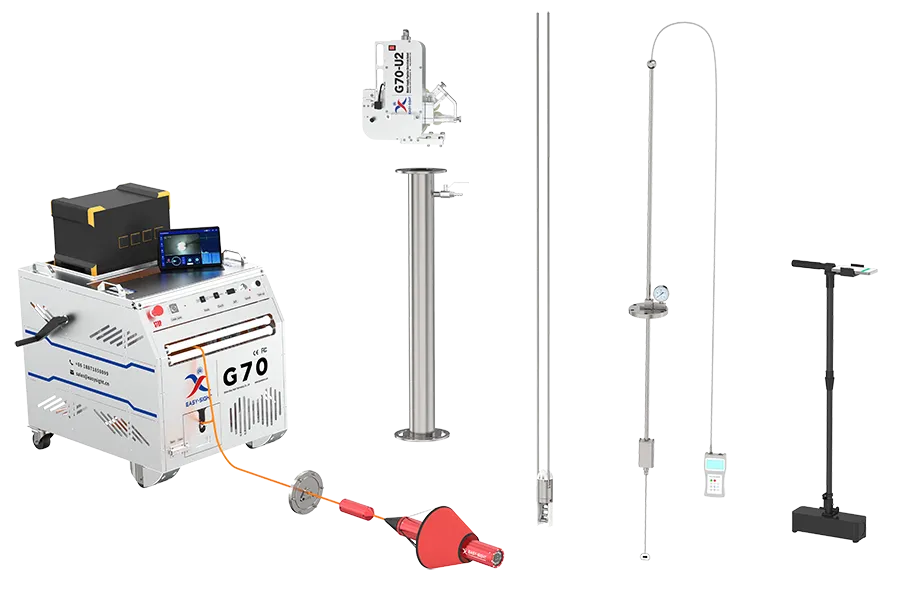

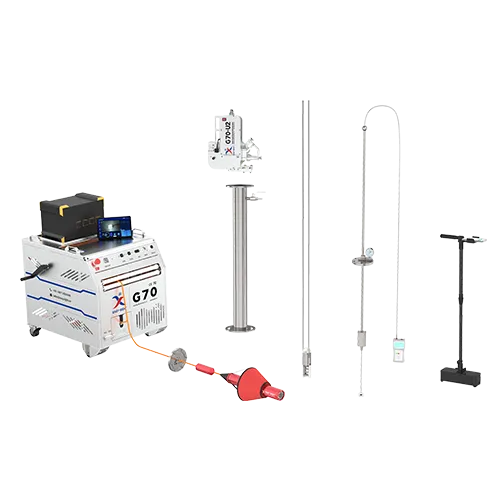

Main Parts

•

  System Performance

  G70-U2 1. Applicable Pipes: Water supply pipes of various materials including steel pipes, cement pipes, PVC, PE, etc.

  2. Applicable Diameter: ≥ DN200mm

  3. Applicable Pressure: 0.1 MPa ~ 1.6 MPa

  4. Applicable Flow Velocity: 0.2 m/s ~ 3 m/s

  5. Launch Port Diameter: ≥ 80mm

  6. Negotiation Capability: Can pass through pipe fittings like bends, reducers, tees, butterfly valves; can navigate cumulative continuous bends ≤270° (individual bend ≤90°)

  7. Leak Detection: Can detect leaks ≥ 0.04 L/min, and save audio/video data of leak locations for analysis and playback

  8. Visual Inspection: Front 2MP HD camera, effectively identifies and records pipe wall and internal anomalies including: leakage, corrosion, lining detachment, deformation, rupture, sedimentation, obstacles, suspended solids, tuberculation, air pockets, redundant joints, etc.

  9. Defect Localization: Horizontal positioning accuracy ≤ ±0.5m; Detection depth ≥ 10 meters (≥8m for metal pipes)

  10. Inspection Distance: Maximum single inspection distance 2km

  11. One-Click Parachute Release: Remote command from control unit for automatic parachute release, suitable for high-flow or long-distance inspection and timely retrieval

  12. Inspection Report: Enables real-time interpretation/evaluation during inspection or post-playback of A/V files; automatically generates standard inspection reports including project info, defect details, evaluation conclusions, etc.

  13. Hygiene Compliance: Components contacting the pipe interior/water (inspection unit, cable, launch device, cable guide, etc.) comply with relevant drinking water hygiene standards; equipped with cable dust removal/disinfection device; possesses test reports from authoritative agencies.

•

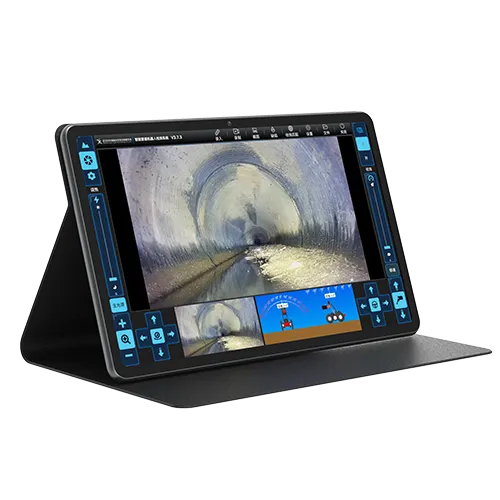

  Main Control

  1. Configuration: Tablet-based, with built-in acquisition, analysis, and control software; customizable CPU/Memory/Storage/Screen size

  2. Control Functions: Controls cable guide device clutch, cable payout/retrieval, speed; controls cable reel payout and speed; controls positioning transmitter on/off; adjusts inspection device light brightness, etc.

  3. Video Recording: Real-time display and recording of video/audio from inspection device

  4. Audio Analysis: Visualizes audio data in real-time, displaying waveform, spectrum, time-frequency diagrams

  5. Status Display: Real-time display of time, date, travel distance, device attitude, etc.; customizable display content

  6. Text Input: Input project information saved to result files (videos, reports)

  Reporting: Supports on-site or playback interpretation; automatically generates standard inspection reports.

•

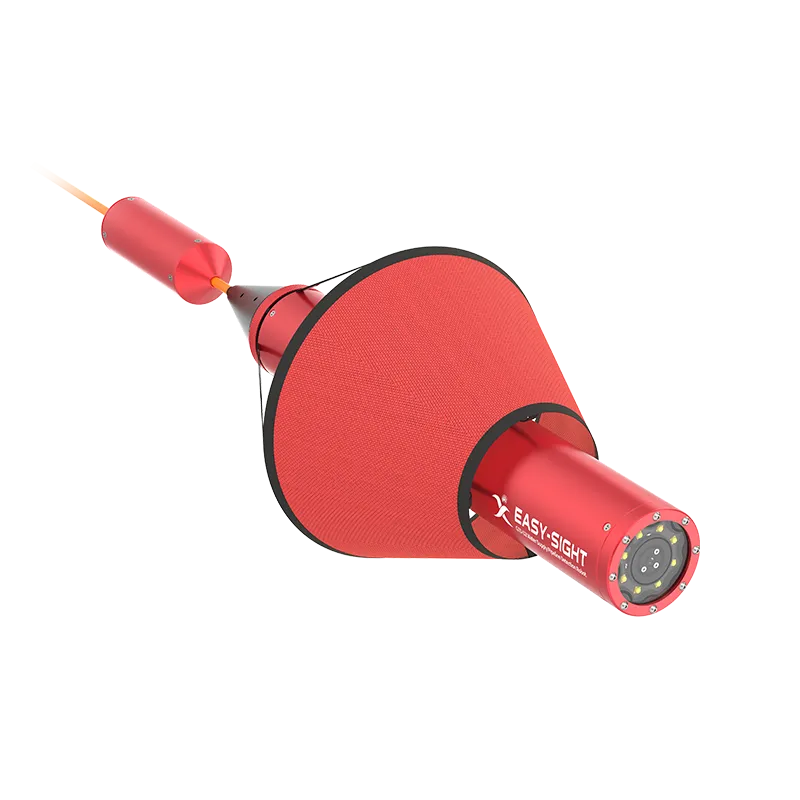

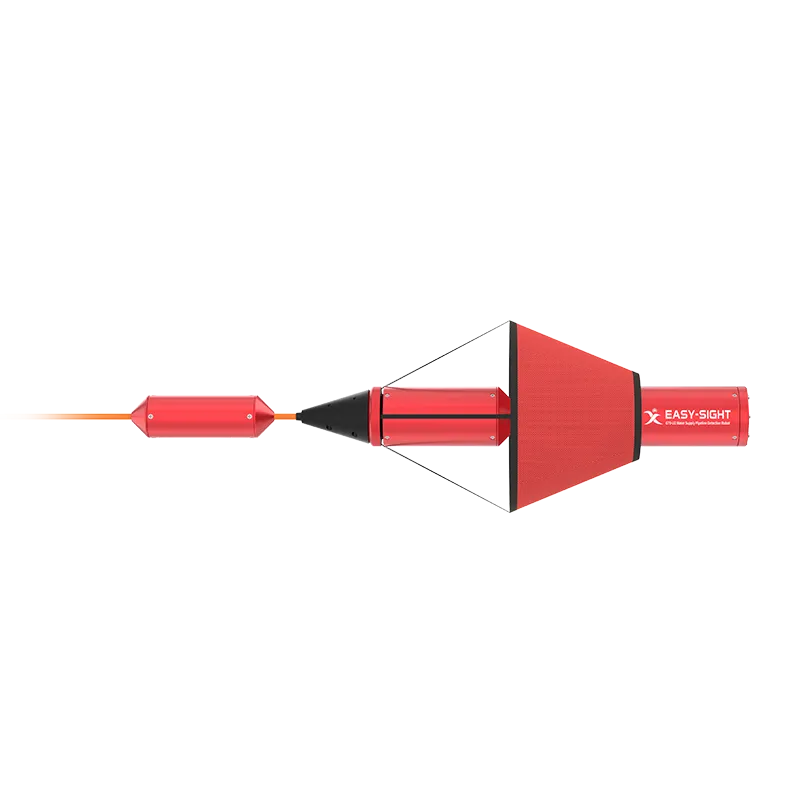

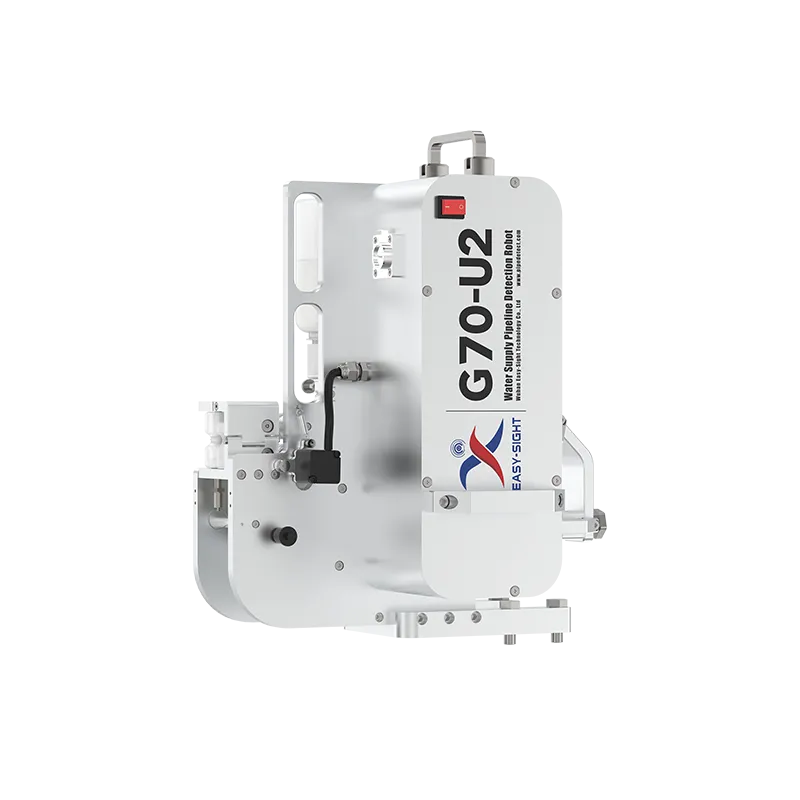

  Parachute-type Inspection Device

  1. Applicable Diameter: ≥ DN200mm

  2. Applicable Pressure: 0.1 MPa ~ 1.6 MPa

  3. Front Lighting: 3.5W LED, adjustable brightness

  4. Camera: 2MP (1920 * 1080) digital HD

  5. Inspection Speed: Forward speed ≤ 1.0 m/s (typically 0.1-0.2 m/s)

  6. Positioning Signal: Penetration depth ≥ 10m (≥8m for metal pipes)

  7. Endurance: Powered via cable reel, unlimited operation time

  8. Powered Parachute: Equipped with multiple specifications for flow velocities 0.2-3 m/s

  9. Modular: Quick connection/disconnection of device and cable via aviation plug

  10. One-Click Parachute Release: Remote command from control unit for automatic release, suitable for high-flow or long-distance inspection and timely retrieval.

•

  Electric Cable Reel

  1. Cable Length: Standard 1000m reel; customizable longer cables for single runs up to 2000m

  2. Cable Parameters: Zero buoyancy cable, imported food-grade polyurethane sheath, compliant with drinking water hygiene standards; 300 kg tensile strength, tensile/flexible/waterproof/abrasion/acid/alkali/corrosion resistant

  3. Electric Retrieval: Manual or remote control modes; manual mode uses reel buttons, remote mode uses control unit (tablet) software

  4. Automatic Layering: Ensures orderly cable distribution on the drum during operation

  5. Protection Rating: IP63 (dust-tight, protected against water sprays)

  6. Power Supply: AC220V input, can connect to mains or portable power source.

•

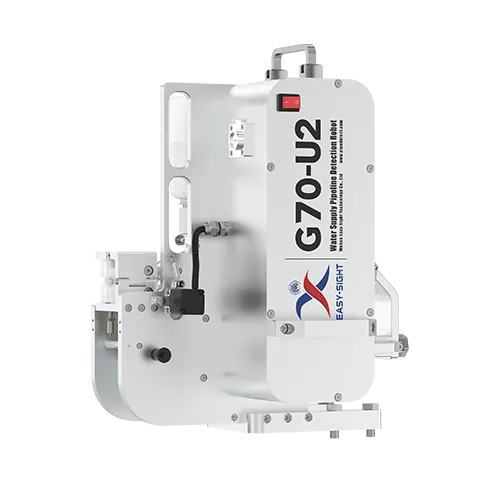

  Cable Guide Device

  1. Drive Control: Motor-driven clutch control for payout/retrieval; emergency stop function

  2. Cable Counting: High-precision encoder, resolution ≤ 1mm

  3. Disinfection/Dust Removal: Equipped with dust removal device and disinfection canister for cleaning cable during guiding

  4. Protection Rating: IP67 (dust-tight, protected against immersion up to 1m).

•

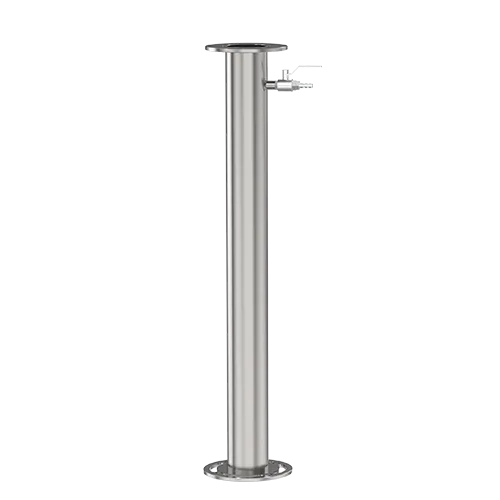

  Launching Device

  1. Applicable Port Diameter: ≥ DN80mm

  2. Applicable Pressure: Internal water pressure ≤ 1.6 MPa

  3. Push Rod Stroke: Standard 2000mm, customizable extensions available

  4. Outer Cylinder Dimensions: φ220mm x 1100mm.

•

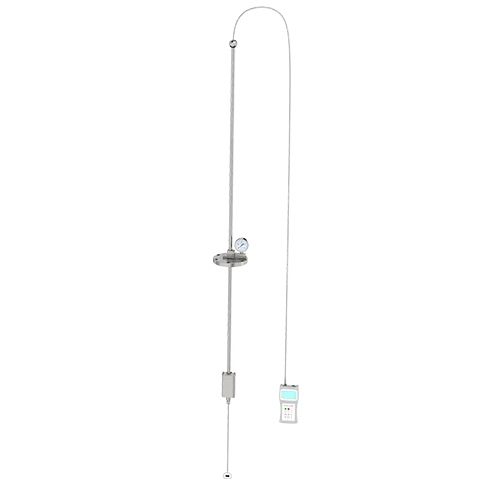

  Flow/Pressure Measurement Device

  1. Measurement Range: Flow velocity 0.01 ~ 4.00 m/s, Pressure ≤ 1.6 MPa

  2. Push Rod Length: 2.4m, customizable lengths available

  3. Pressure Gauge: Mechanical pressure gauge on sealed end cap.

•

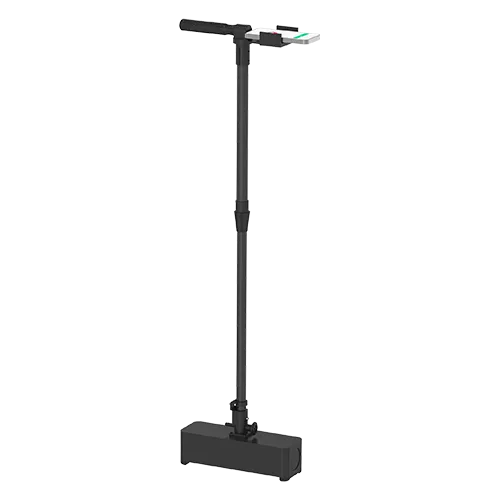

  Ground Detection Device

  1. Positioning Method: Detects and locates by receiving positioning signals from the in-pipe inspection device

  2. Acquisition & Display: Uses smartphone (mount included on handle) for wireless communication with receiver for data acquisition/display

  3. Detection Depth: Horizontal accuracy ≤ ±0.5m; Depth detection ≥ 10m (≥8m for metal pipes)

  4. Battery Life: Built-in lithium battery, continuous operation ≥ 12 hours

  5. Total Weight: ≤ 3kg (excluding phone).

•

  PipeLeak Water Supply Pipe A/V Inspection Analysis Software




  1. Input project info/overlay text; real-time A/V acquisition/playback and recording

  2. Real-time audio analysis displaying waveform, spectrum, time-frequency diagrams
  3. Real-time acquisition of device IMU data (roll, yaw, pitch) and 3D animation of device attitude
  4. Device control: light adjustment, cable payout/retrieval/speed, protection current setting, positioning signal transmission
  5. Real-time or post-playback pipeline status interpretation; auto-capture video/audio spectra; generate standard reports with project info, defect details, conclusions.

•

  PipeLeakLoc Pipeline Leak Detection & Locator Software

  1. Wireless comms with ground device; displays battery status; receives real-time positioning data; plots signal strength graph

  2. Estimates pipe burial depth based on detection info; uses signal strength graph to guide positioning

  3. Displays current user location map info; supports offline maps

  4. Add custom map markers for defects/pipeline nodes; connect markers to draw pipelines; screenshot saving supported

  5. Save marker info as Excel; supports import, view, and edit of historical marker data.
