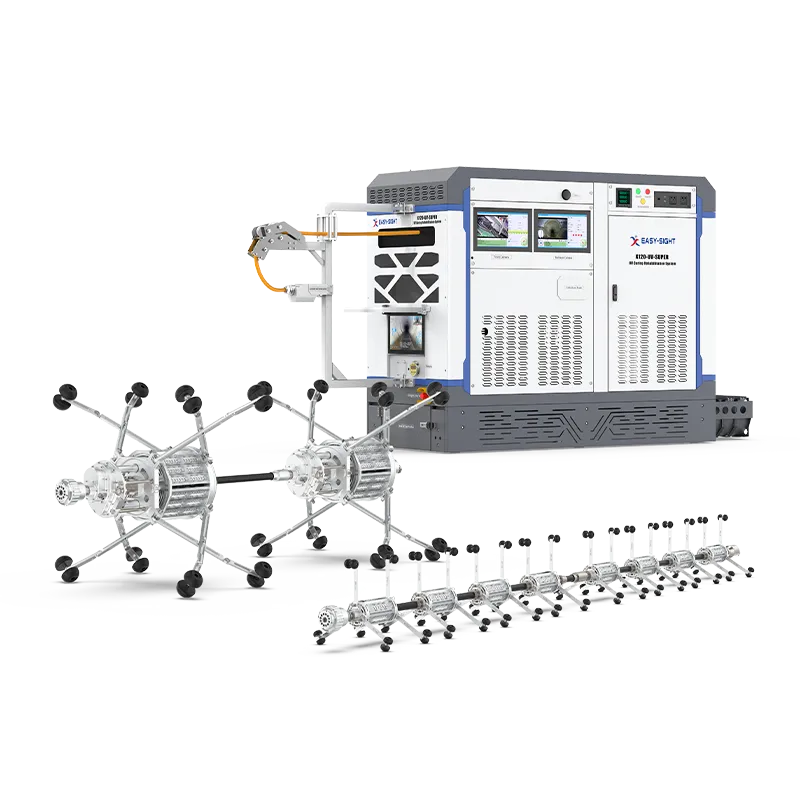

X120-UV-SUPER UV Curing Rehabilitation System

X120-UV-SUPER UV Curing Rehabilitation System

The X120-UV-SUPER UV Curing Rehabilitation System consists of specialized equipment, including a power system, UV rehabilitation control system, UV lamp frame system, video monitoring system, pipeline pressure adjustment system, and cold air cabinet.

Utilizing advanced ultraviolet curing technology, it is primarily designed for trenchless UV curing rehabilitation of municipal pipeline facilities with diameters ranging from DN200 to DN1600.

Inquire Now Download

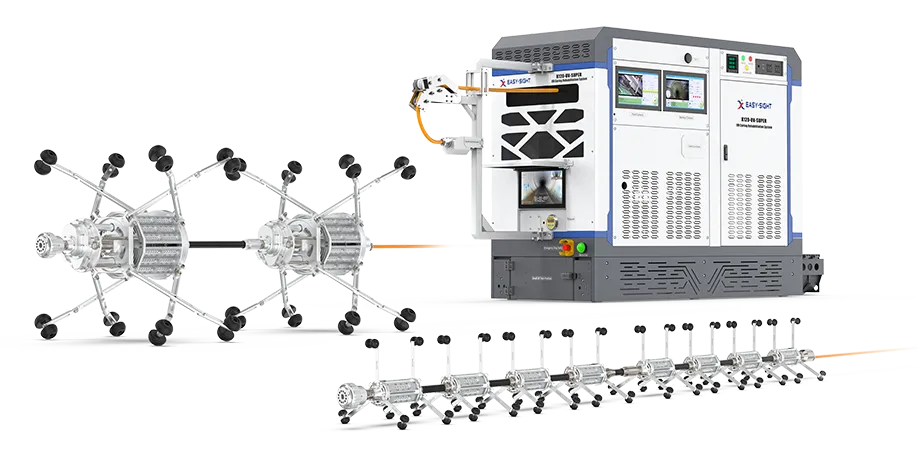

Key Features

Mobile control cabinet
Standard 170m cable
Monitoring main screen
200MP high-definition camera
IP68 waterproof rating
Dual LED lighting systems: 2x1080W/section light bars; 8x180W/meter light chains

Product Overview

Utilizing advanced ultraviolet curing technology, it is primarily designed for trenchless UV curing rehabilitation of municipal pipeline facilities with diameters ranging from DN200 to DN1600.

Key Technical Features:

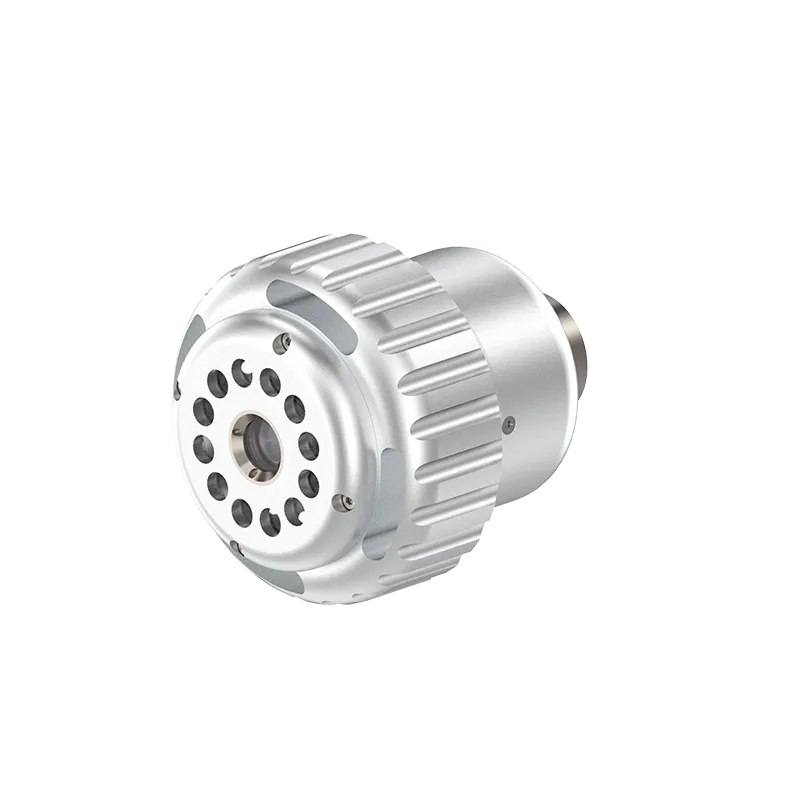

● The large and small lamp frames, along with front and rear viewing lenses, are waterproof with an IP68 protection rating, enabling operation in complex rehabilitation conditions.

● Precise pipe diameter matching ensures the lamp frame remains centered during rehabilitation, improving efficiency.

● Extended light source lifespan.

● The minimalist internal design of the large and small lamp frames includes only the light source and temperature sensors, ensuring stable device performance.

● Each set of large or small lamp frames can be connected in interchangeable sequences, offering multiple combination modes.

Main Parts

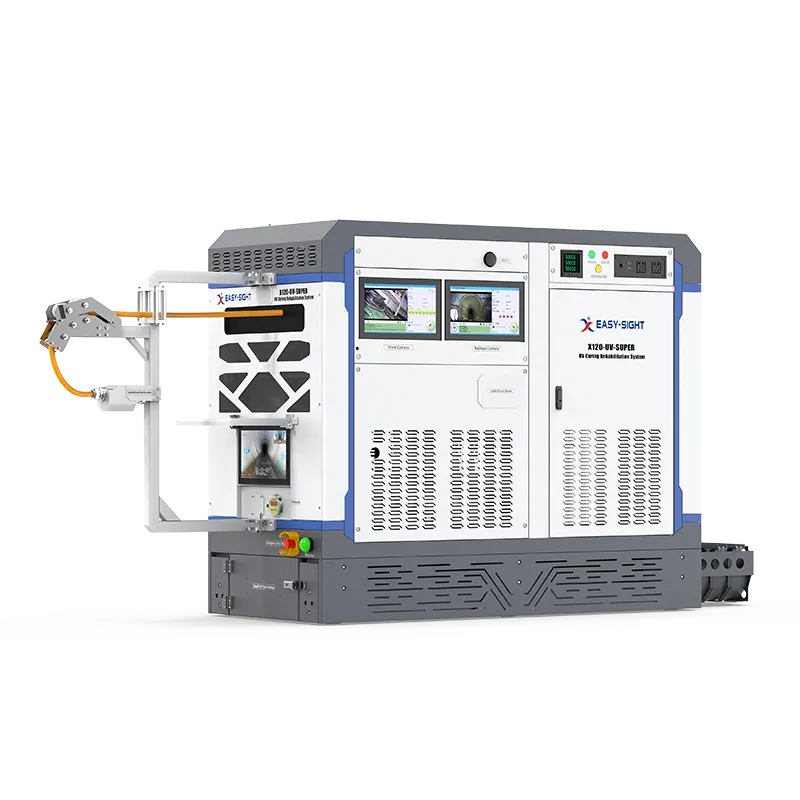

Main Unit

1. Dimensions (LWH) incl. Articulated Arm: 1760 * 750 * 1370 mm;
2. Cable Length: 150 m (Waterproof, Abrasion-resistant, Heat-resistant, Chemical-resistant, Corrosion-resistant), optional 200 m available;
3. Monitors: 3 No. (two for forward view, one for rear view);
4. Main Controller: Android Tablet;
5. Parameter Setting: Configurable curing parameters, including: Liner diameter, Liner wall thickness;
6. Pressure Control: Manual regulation of blower output pressure;
7. Curing Control: Automated curing based on set parameters and traction speed (Auto-retract/rewind, Auto-levelwind);
8. Imaging: High-definition analog cameras with real-time display on 3 screens;
9. Status Indication: Displays curing pressure and traction speed;
10. Length Measurement: High-precision encoder with 1 mm resolution;
11. Weight: Approx. 560 kg;

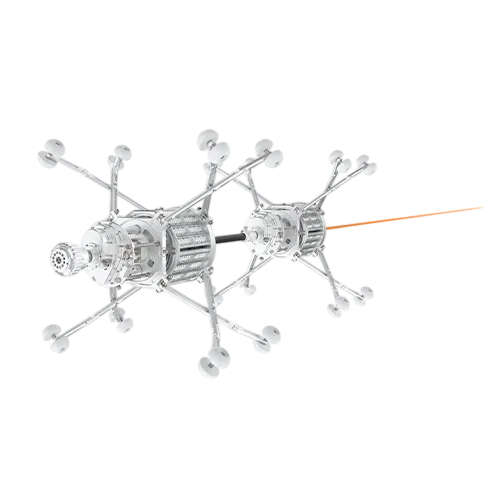

Large Curing Lamp Assembly

1. Ingress Protection (IP) Rating: IP68;
2. Light Source: LED;
3. Power Rating: Approx. 1080 W per section;
4. Weight: Approx. 33 kg per section;
5. Applicable Pipe Range: DN700 - DN1600;

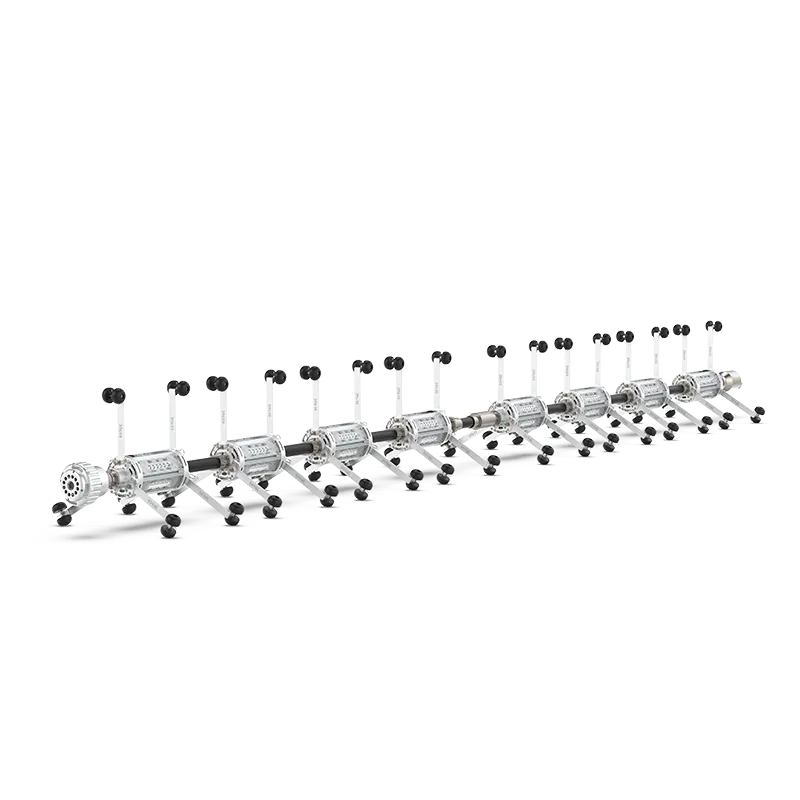

Small Curing Lamp Assembly

1. Ingress Protection (IP) Rating: IP68;
2. Light Source: LED;
3. Power Rating: Approx. 180 W per section;
4. Weight: Approx. 3.5 kg per section;
5. Applicable Pipe Range: DN200 - DN600;

Related Cases

City of West Lafayette Municipal Inspection

Topic: United States | Pipe Inspection | Easy-Sight X1-P1 Pipe Periscope

Related Products: Easy-Sight X1-P1 Pipe Periscope

View More Get a Quote

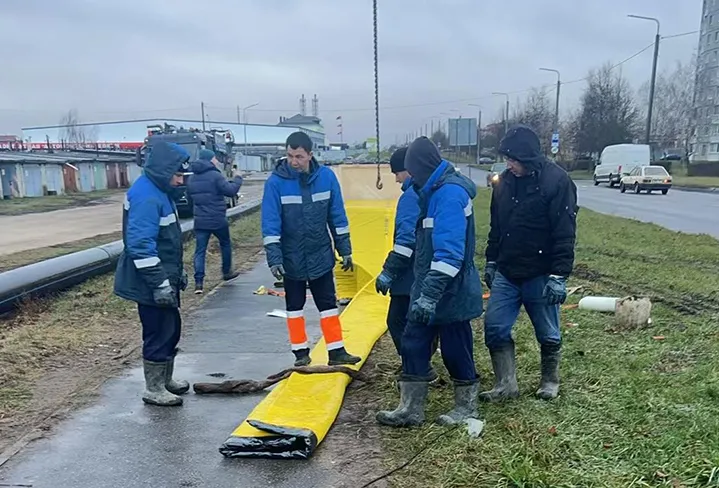

Rehabilitation Equipment Applications Cases: Finland, Malaysia, and Russia

Topic: Trenchless Rehabilitation | Finland | Malaysia | Russia

Related Products:Easy-Sight X120-UV UV-CIPP System,ZY-86 UV Liner

View More Get a Quote

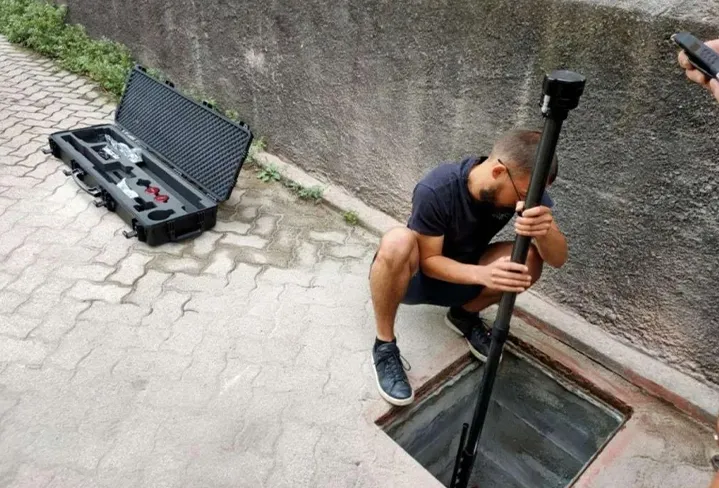

Spotlight on Global Success: Easy-Sight's Worldwide Pipeline Inspection Projects

Related Products: X1-H4 Pan & Tilt Camera Inspection, X5-HR4 All-Terrain Robotic Crawler, X5-HS CCTV Robotic Inspection, X5-HW2 Long-Distance Inspection

View More Get a Quote

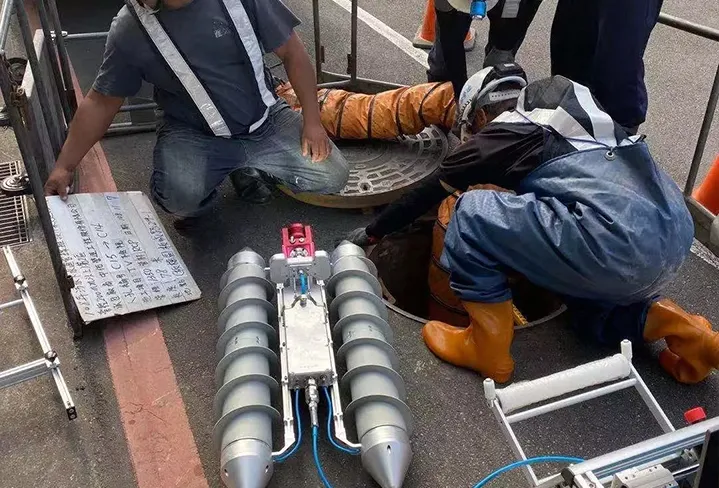

Modernizing Taiwan's Urban Drainage: Advanced Solutions for Extreme Rainfall

Topic: Advanced Solutions|Taiwan|Trenchless Rehabilitation

Related Products:Easy-Sight X5-HR Inspection Robot, X120-D Rehabilitation System

View More Get a Quote

Recommand for You

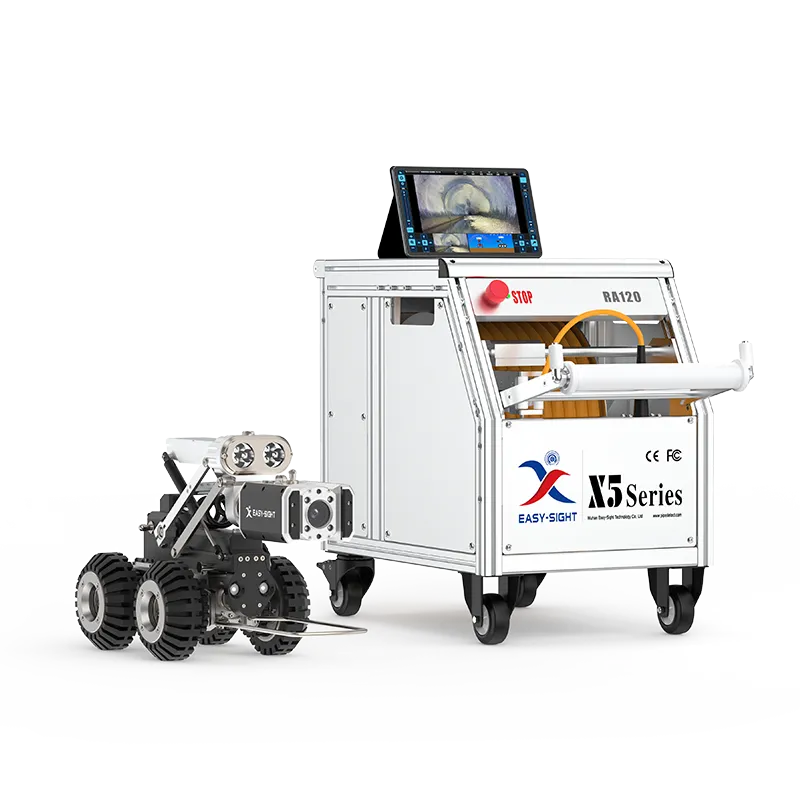

X5-HMA4 Pipeline CCTV Inspection Robot

The X5-HMA4 pipeline CCTV inspection robot is a high-definition system that uses a tablet as the main control unit.

The controller connects wirelessly to other components, enabling real-time display and recording of HD inspection videos and crawler status.

During inspections, the system instantly captures defect images and generates reports immediately after completion.

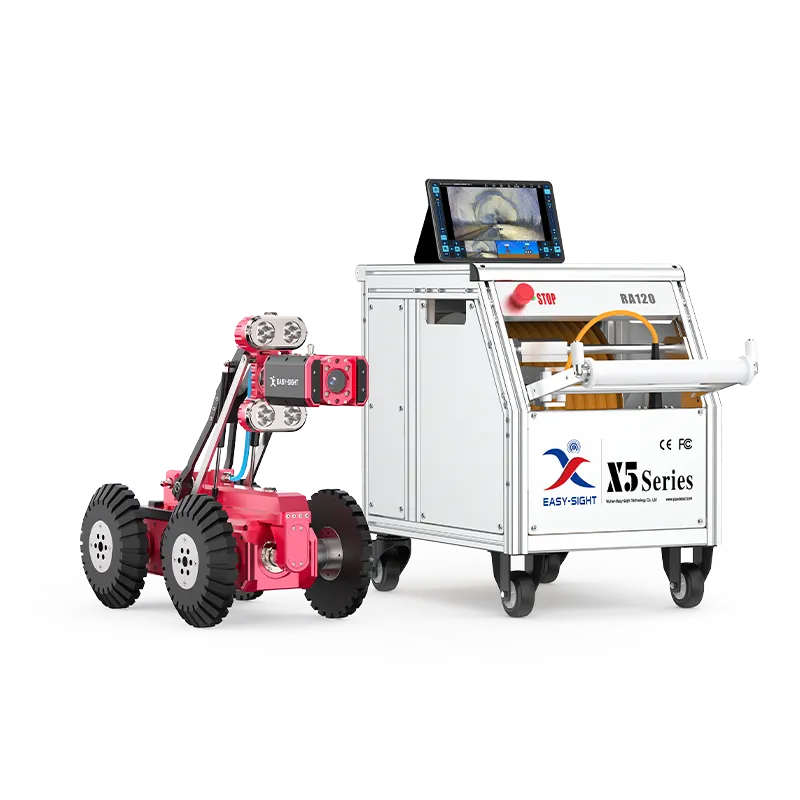

X5-HS Pipeline CCTV Inspection Robot

The X5-HS pipeline CCTV inspection robot is a high-definition inspection system that can utilize a tablet as the primary control unit.

The main controller connects wirelessly to other system components to display and store high-definition inspection video in real time.

The X5-HS pipeline CCTV inspection robot consists of several main components, including the crawler, the camera, the cable reel, and the main control unit.

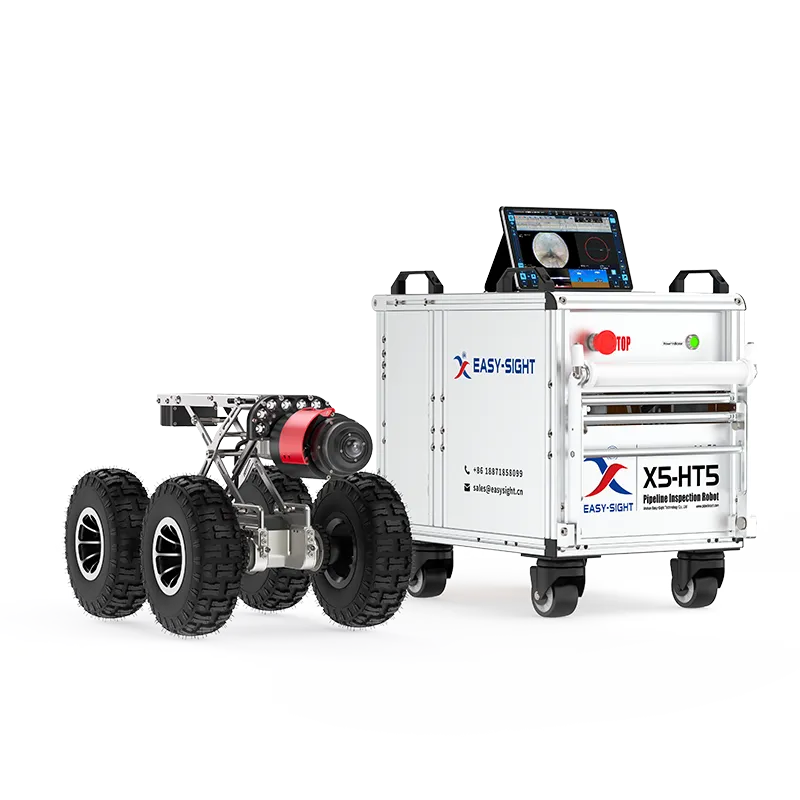

X5-HT5 Pipeline CCTV Inspection Robot

The X5-HT5 pipeline CCTV inspection robot is a high-definition pipeline inspection system that utilizes a tablet as the primary control interface.

The main control unit connects wirelessly to other system components to display and store high-definition inspection video in real time.

The X5-HT5 pipeline CCTV inspection robot consists of four main parts: the crawler, the camera, the cable reel, and the main control unit.

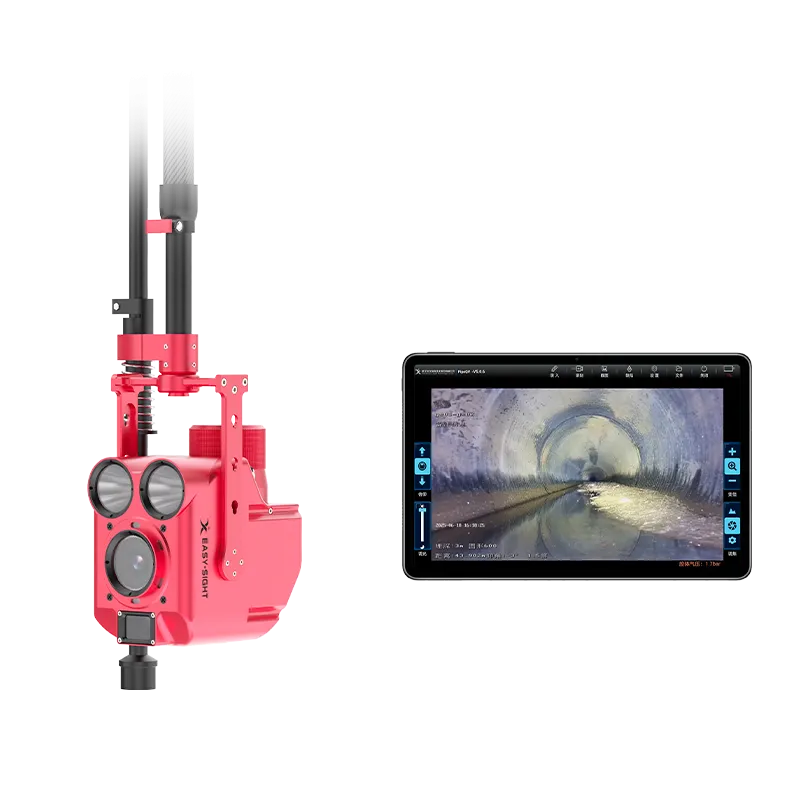

X1-P1 Pipeline Quick View Camera

The X1-P1 series Pipeline Quick View Camera is primarily used for rapid inspection and diagnosis of industrial containers or pipeline interiors. By lowering the camera probe with its own light source into pipelines or industrial containers via an operating rod, it clearly displays structural and functional defects inside pipelines and containers.

X5-HR4 All-terrain Pipeline Robot

The X5-HR4 all-terrain pipeline robot comprises three main components: a spiral propulsion crawler, a cable reel, and a control terminal.

It is designed to operate in environments with a minimum diameter of DN600mm, including those with heavy siltation and high water levels where conventional CCTV inspection robots cannot function.

The system is equipped with a 360° high-definition camera that provides a comprehensive view of the pipeline interior.

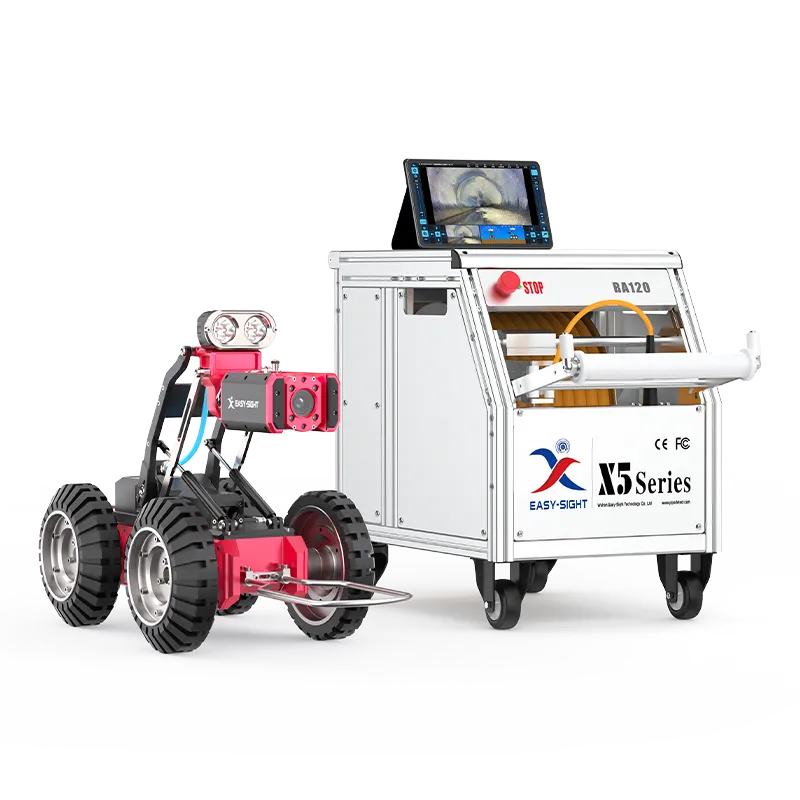

X5-HT4 Pipeline CCTV Inspection Robot

The X5-HT4 pipeline CCTV inspection robot is a high-definition inspection system that uses a tablet as the primary control unit.

The main controller connects wirelessly to other system components to display and store high-definition inspection video in real time.

The X5-HT4 pipeline CCTV inspection robot comprises four main parts: the crawler, the camera, the cable reel, and the main control unit.

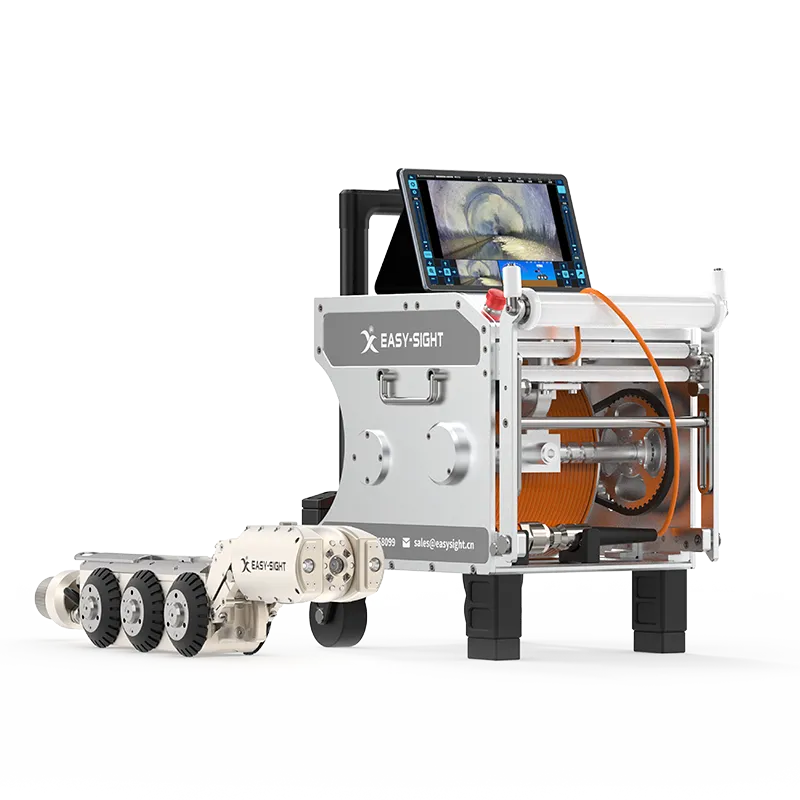

X5-HM100 Pipeline CCTV Inspection Robot

The X5-HM100 is a compact HD pipeline CCTV inspection robot system, utilizing a tablet as the master control unit. The master control connects wirelessly to other system components, enabling real-time display and recording of high-definition inspection videos. It is suitable for inspecting community small-diameter pipelines and municipal storm/sewer pipelines from DN100 to DN250.

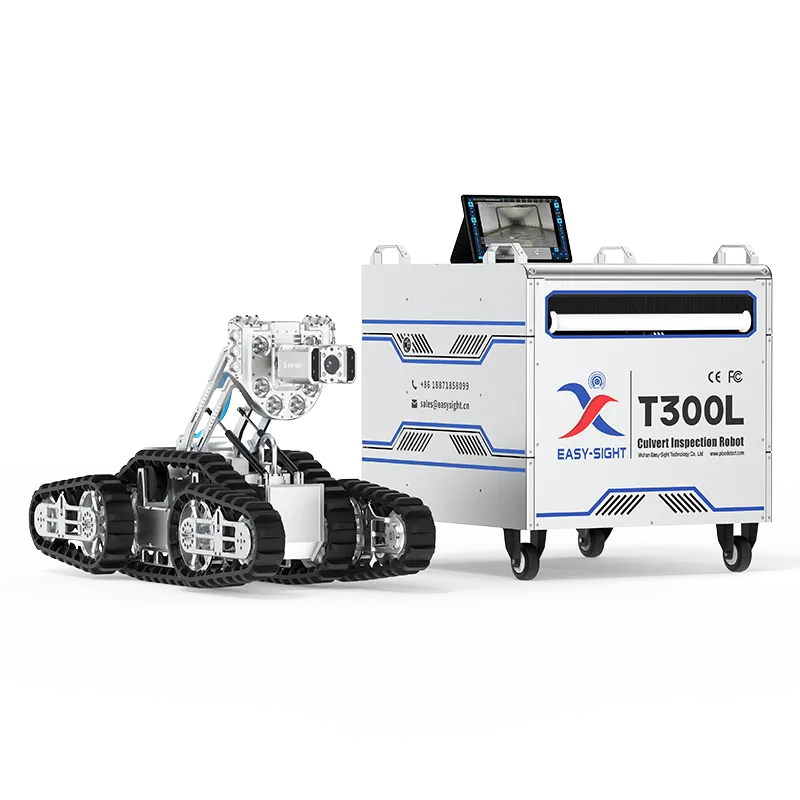

T300L2 Box Culvert Inspection Robot

The T300L2 box culvert inspection robot consists of a tracked crawler, a cable reel, and a control terminal. The crawler utilizes a new track structure equipped with front and rear swing arms, enabling multiple posture adjustments.

G70-U2 Umbrella-Type Water Supply Pipeline Internal Inspection Robot

The G70-U2 Umbrella-Type Water Supply Pipeline Internal Inspection Robot is a non-destructive testing and evaluation system developed based on acoustic and video imaging technologies.

Utilizing a specialized launching device, the detection unit can be deployed into the pressurized water supply pipeline without shutting off the water flow.

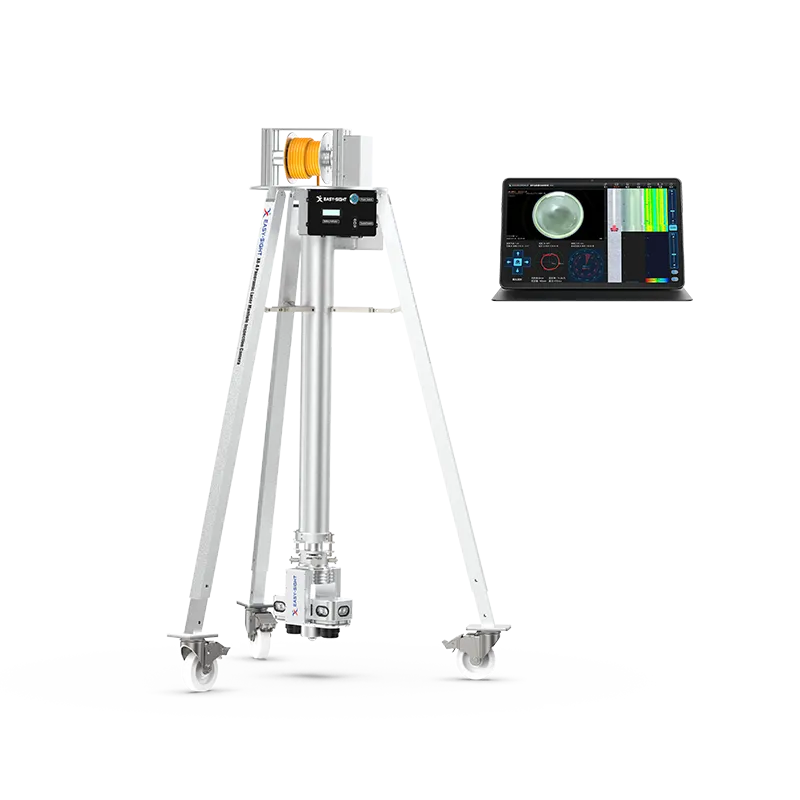

X8-A Panoramic Laser Shaft Surveying System
