X120-UV-MINI UV Curing Rehabilitation Vehicle

X120-UV-MINI UV Curing Rehabilitation Vehicle

Utilizing advanced UV curing technology, it is designed for trenchless rehabilitation of pipelines ranging from DN150 to DN600mm. Its compact design enables efficient operation in narrow spaces such as old residential areas.

Inquire Now

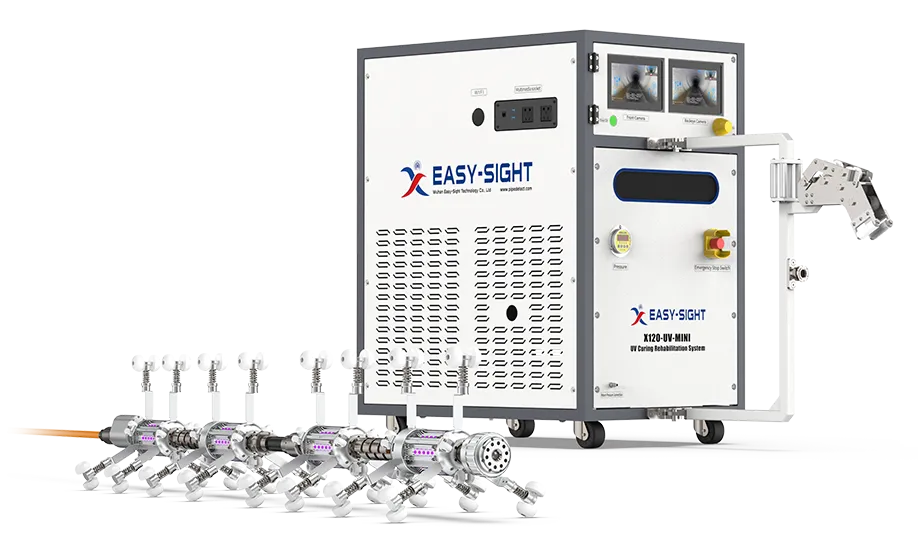

Key Features

Mobile control cabinet
Standard 100m cable
Monitoring main screen
200MP high-definition camera
IP68 waterproof rating
4x180W/meter light chains

Product Overview

The X120-UV-MINI UV Curing Rehabilitation Vehicle integrates specialized systems including the power system, UV control system, UV lamp frame system, video monitoring system, pipeline pressure regulation system, and pipeline cooling system. Utilizing advanced UV curing technology, it is designed for trenchless rehabilitation of pipelines ranging from DN150 to DN600mm. Its compact design enables efficient operation in narrow spaces such as old residential areas.

Technical Features:

1. Suitable for trenchless rehabilitation of DN150-DN600mm pipelines, meeting repair demands in old residential areas

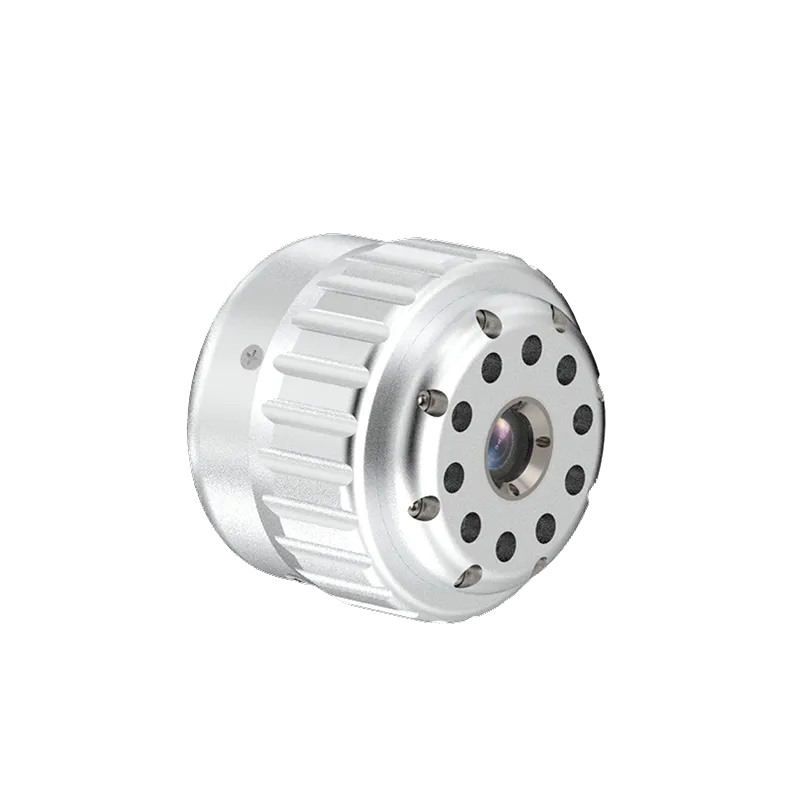

2. Water-splash-resistant MINI lamp frame and front/rear cameras for complex working conditions

3. Precise pipe diameter matching ensures centered lamp positioning for improved efficiency

4. Extended service life of the light source

5. Minimalist internal lamp frame design with only essential light sources and temperature sensors, ensuring stable performance

Main Parts

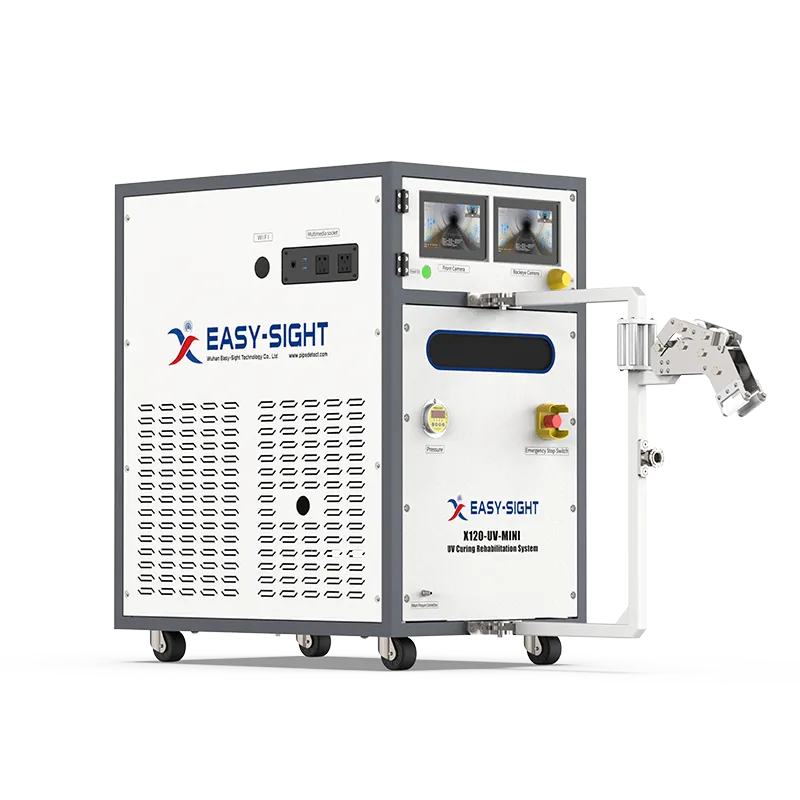

Main Unit

1. Dimensions (L×W×H): 900 × 630 × 1030 mm
2. Cable Length: 100 m (Waterproof, Abrasion-resistant, High-temperature resistant, Acid/Alkali resistant, Corrosion-resistant)
3. Display Screens: 2 (One for front view, one for rear view)
4. Main Control System: Android Tablet
5. Parameter Setting: Configurable curing parameters, including repair pipe diameter and material thickness
6. Pressure Control: Manual/Automatic adjustment of blower output
7. Curing Control: Automated repair based on set parameters and speed (Automatic cable winding/layering)
8. Image Acquisition: HD analog cameras with real-time display on dual screens
9. Indicating Functions: Displays curing pressure and speed
10. Counting: High-precision encoder with 1 mm resolution
11. Weight: Approx. 300 kg

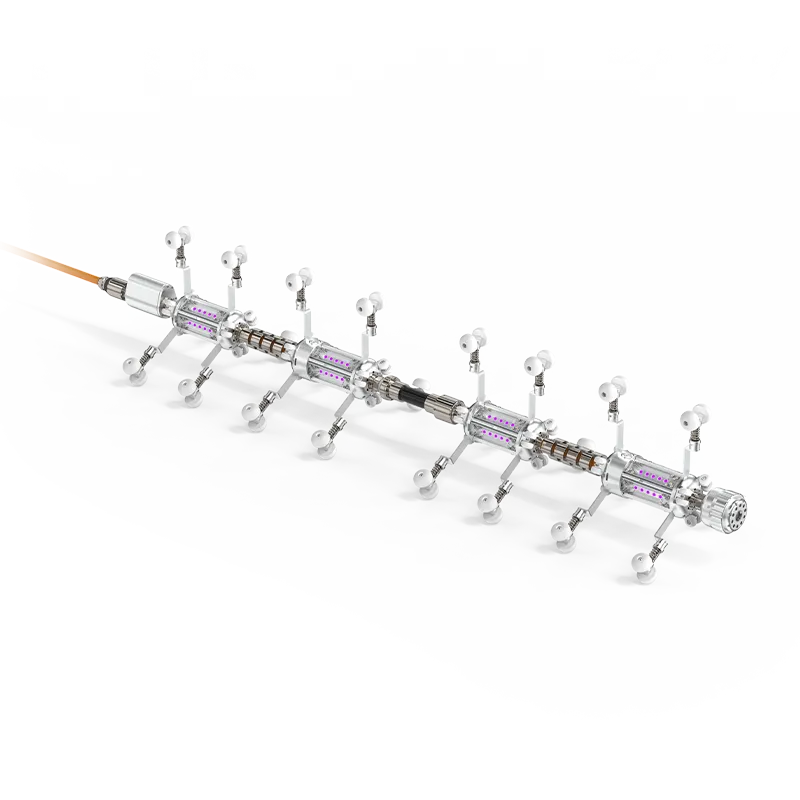

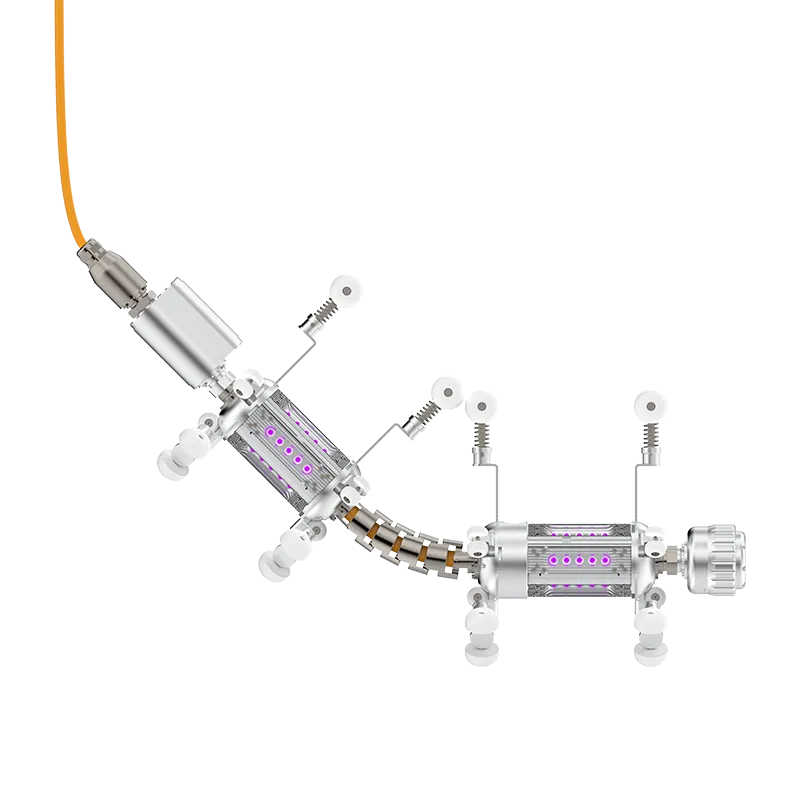

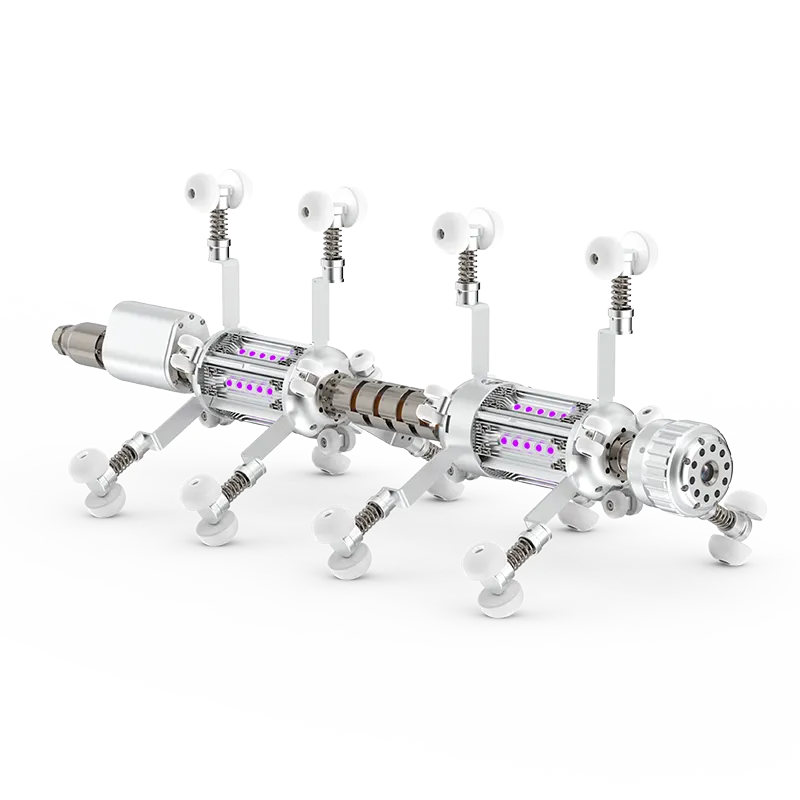

MINI Small Lamp Rack

1. Suitable Pipe Diameter: DN150 - DN600 mm
2. Light Source: LED
3. Monitoring: Integrated temperature sensor for real-time measurement of temperature, pressure, and distance during the curing process

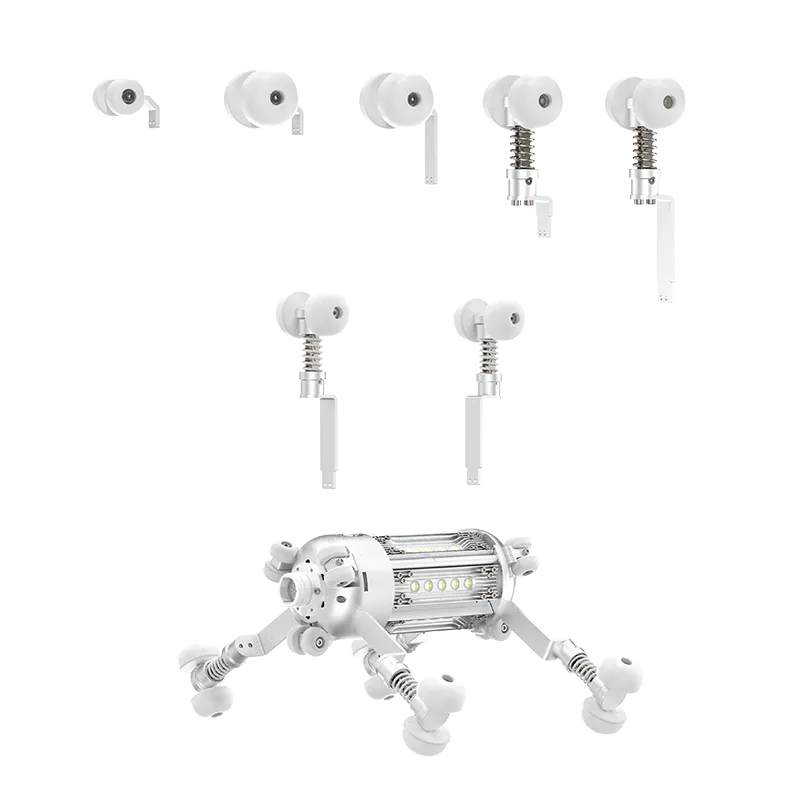

4. Pipe Diameter Adjustment: Manual
5. Power: 180 W/section
6. Weight: Approx. 3.5 kg/section
