QS-360 3D Panoramic Surveying System

Product Overview

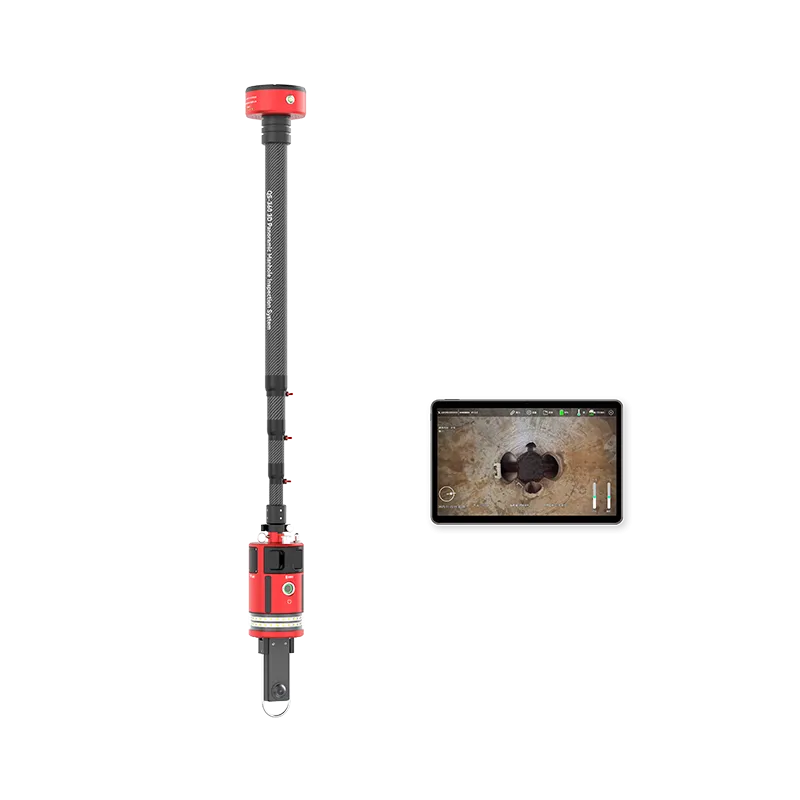

Main Parts

•

  Main Controller

  1. Operating System: HarmonyOS / Android 9.0 or above
  2. CPU: Qualcomm Snapdragon 888 or above
  3. Display: 10.4-inch or larger, high-definition, high-brightness screen
  4. Weight: Approx. 700g
  5. Battery Life: Continuous operation approx. 8 hours, with power level indication
  6. Display Unit: Capacitive 10-point multi-touch screen, resolution 1920 × 1200
  7. Storage: 128GB or larger
  8. Information Display: Real-time display of internal environment, date/time, device power level, etc.; display status configurable via function keys
  9. Image Capture: Quick capture and save defect images
  10. Playback: Browse and replay video files or images
  11. Text Input: Input text information for on-screen overlay and save within the video
  12. Interface: Type-C
  13. Software Permissions: Permissions for media/files, location, camera, installing other apps within the app, background pop-ups/overlays, etc., used to support file saving, screen recording, etc.

•

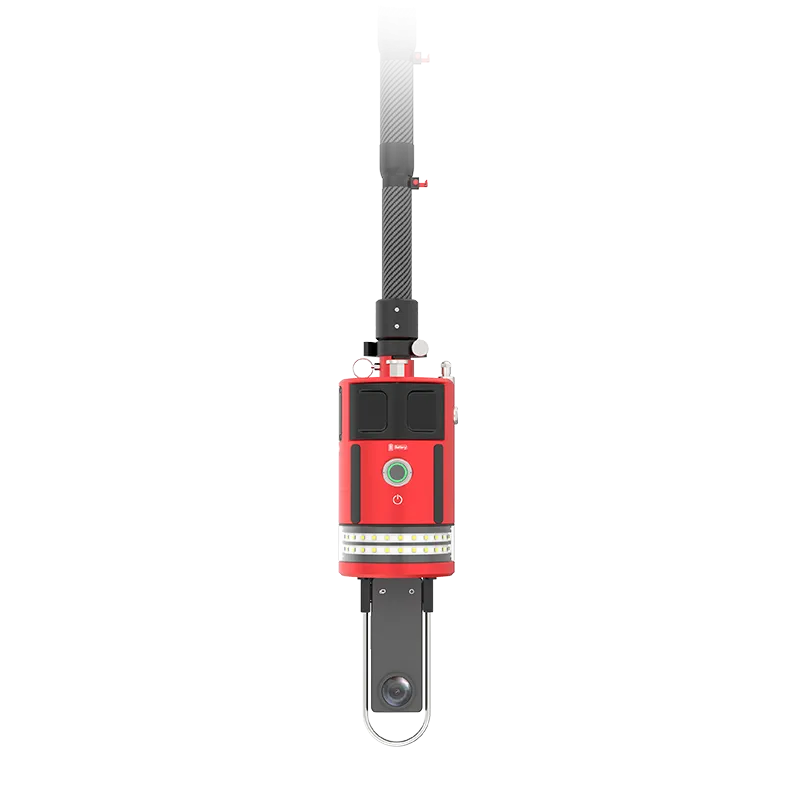

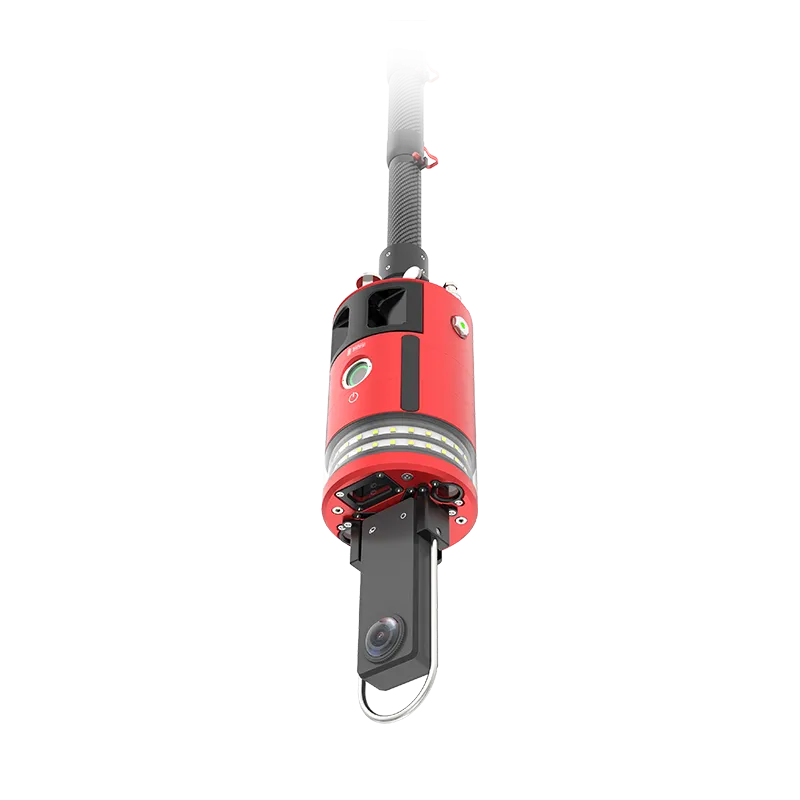

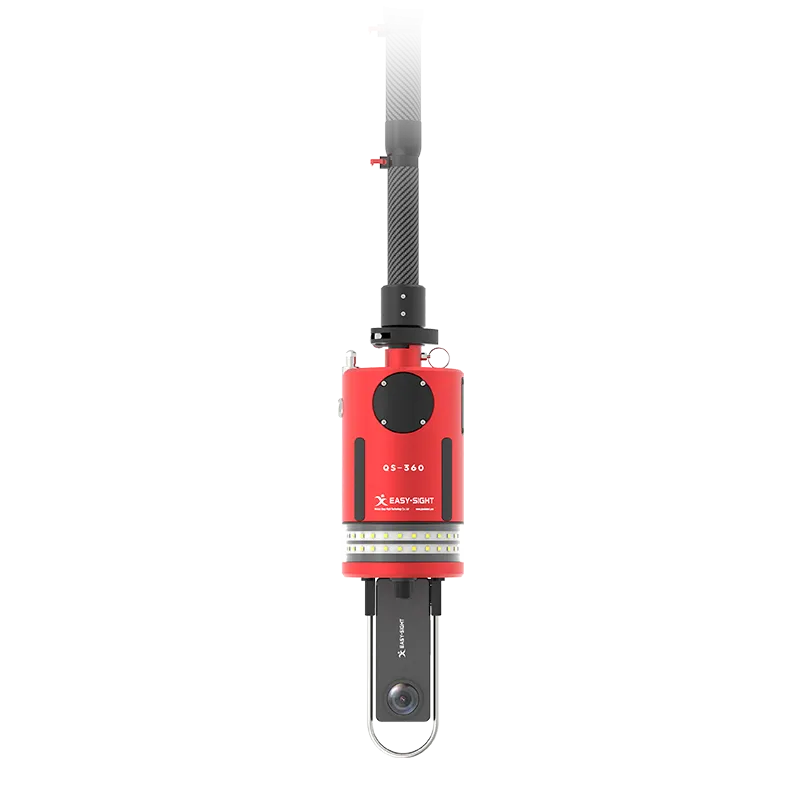

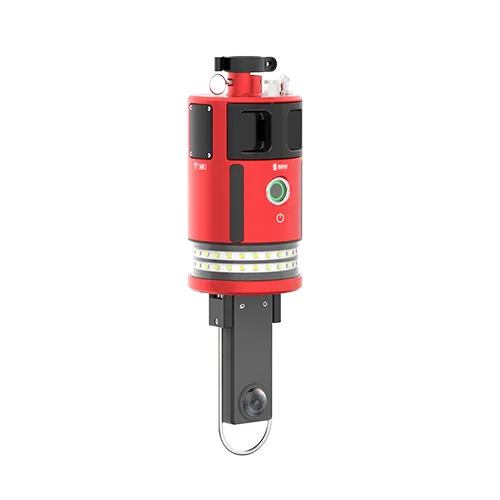

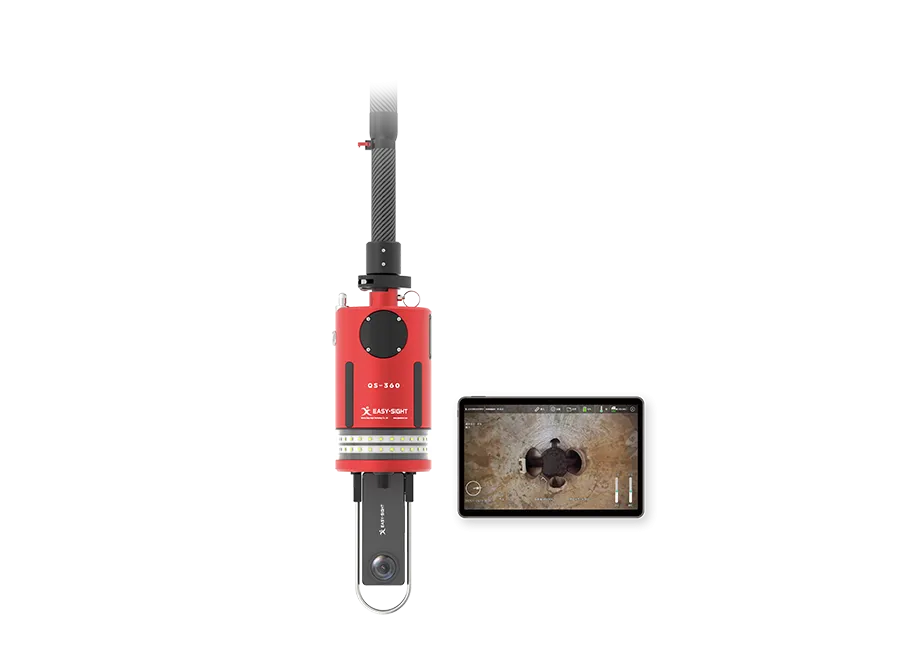

  Probe

  1. Dimensions: 106mm (diameter) * 366mm (height)
  2. Weight: 2.25kg (including battery)
  3. Suitable Environment: 500mm ~ 2000mm manholes
  4. Imaging System: Aperture F2.0, 35mm equivalent focal length 6mm
  5. Video Resolution (Panoramic Mode): 4K: 3840x1920@fps
  6. Video Format: INSV
  7. Lighting System: 2 independent 3W floodlights, 2 light strips each 6W; separately steplessly dimmable
  8. Protection Rating: IP68, waterproof, dustproof
  9. Battery Life: Standard 2 batteries; single battery lasts 2 hours (standard conditions), enabling continuous operation
  10. Wireless Transmission: Wireless connection between Main Controller, Probe, or Signal Box
  11. Operating Temperature: -20℃ ~ 40℃
  12. Pressure Indication: Green light for 1.2 bar ≤ P < 1.5 bar (Normal); Red light for P ≥ 1.5 bar (High) or P < 1.2 bar (Low)

•

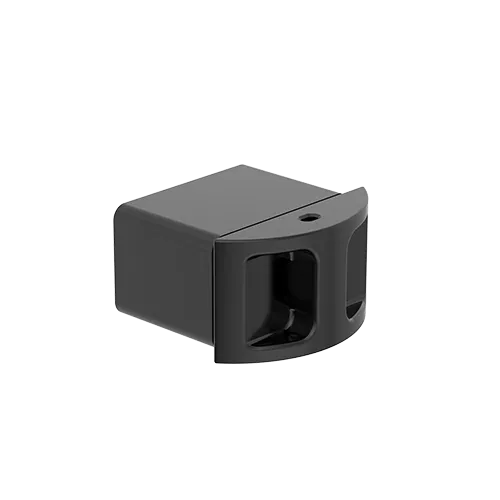

  Probe Battery

  1. Battery Life: Capacity 3500mAh, single battery provides approx. 2 hours use; power level indicated in software interface
  2. Dimensions: 84mm (L) * 50mm (W) * 86mm (H)
  3. Weight: 470g

•

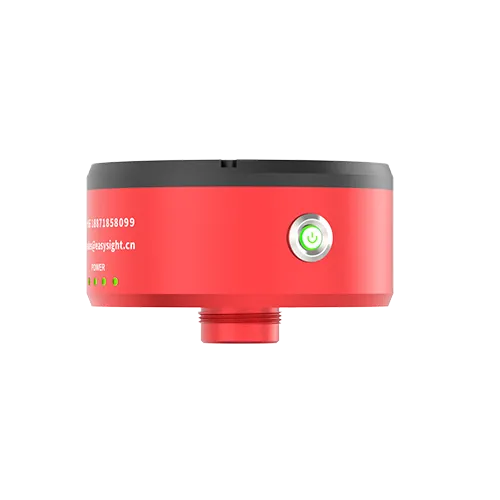

  Signal Box

  1. Battery Life: Approx. 13 hours use, with power level indication
  2. Dimensions: Φ117mm * 58mm
  3. Weight: 663g
  4. Standard Charger: Output 25.2V/2A

•

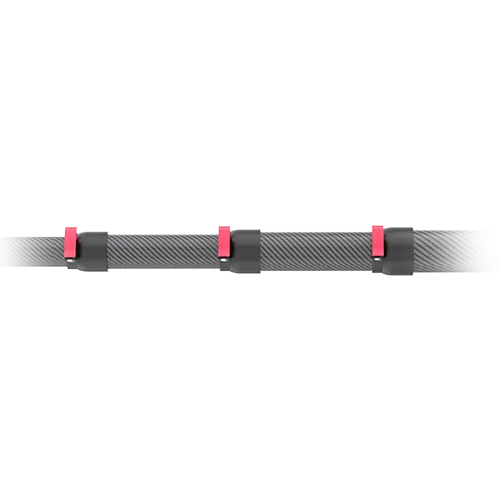

  Control Pole

  1. Material: Carbon fiber
  2. Design: Nested telescopic design with strong locking joints; fully extended length 4.8m
  3. Extendable: Can be extended up to 12m maximum (optional)

•

  QS-360 3D Panoramic Manhole Inspection System Analysis Software

  1. Project Management: Full lifecycle management of project files. Auto-stitching upon importing 360° panoramic video. Supports playback in tiled projection or VR immersive mode.
  2. Image Extraction: Extract images for 3D reconstruction based on set parameters.
  3. 3D Modeling & Analysis: Generate 3D real-scene models of manholes; provide analysis tools (spatial measurement, cross-section cutting, coordinate calibration).
  4. Unwrapped View: Generate structurally accurate unwrapped views of manholes; supports length measurement within the view for defect locating/sizing.
  5. Standards Support: Supports Chinese standard "TCECS 1507—2023" and US MACP standard system; supports dynamic parameter modification and inlet marking.
  6. Defect Analysis: Image capture, annotation, and interpretation tools based on multiple standards (National/US).
  7. Reporting: Generate customized manhole analysis reports using multiple templates to meet user-specific needs.
