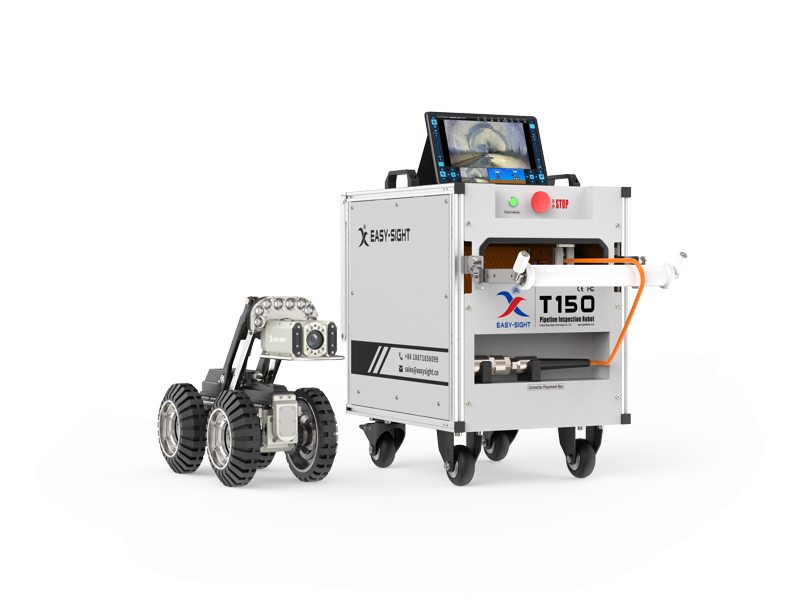

T150 Pipeline CCTV Inspection Robot

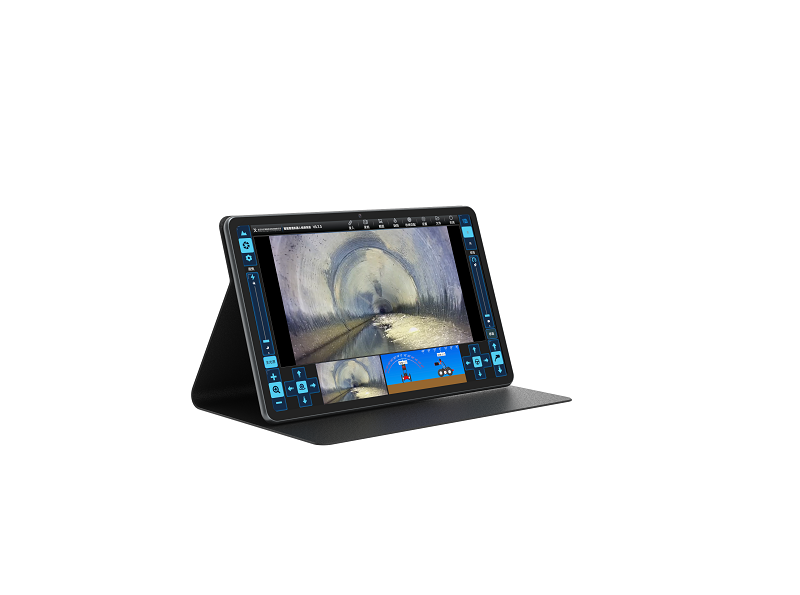

1. Configuration: Uses a tablet as the main unit with built-in acquisition software; CPU/RAM/Storage/Screen size, etc., are configurable.
2. Control Functions: Controls crawler movement, lens rotation, cable reel winding/unwinding, light source adjustment, etc.
3. Video Display: Front-view video with adjustable resolution.
4. Status Display: Real-time display of time/date, travel distance, crawler attitude; configurable font, size, and background color for attitude display.
5. Text Input: Supports Chinese/English character input for on-screen overlay.
6. Assistance Functions: Automatic crawler model recognition, suitable pipe diameter calculation, real-time lens height display.
7. Clock Reference: Clock positioning and display for current defect location.
8. Alarm Functions: Roll angle over-limit alarm; high/low air pressure alarms.
9. On-site Interpretation: Capture defect images on-site, interpret type/grade per selected standards, and record to files.

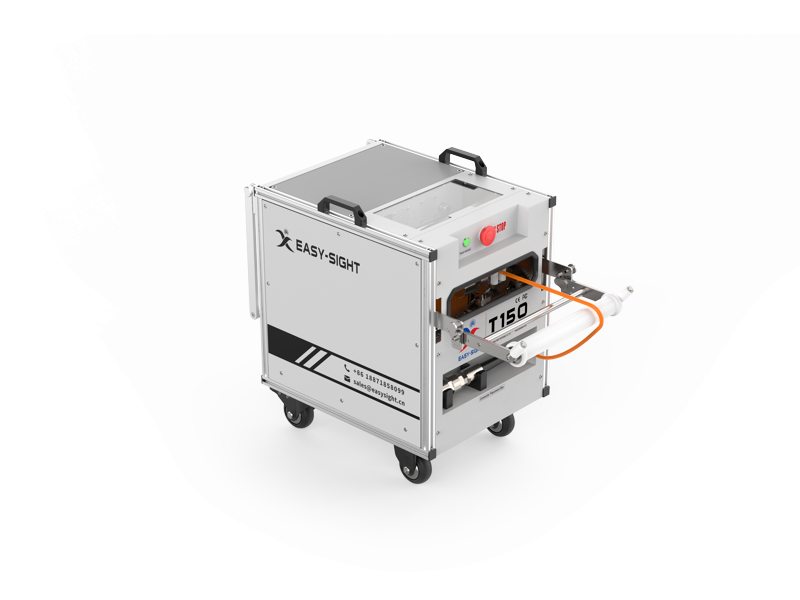

1. Standard Cable Length: 120 meters.
2. Cable Parameters: 4-core, 1.2mm diameter cores, 300 kg Kevlar reinforcement, imported polyurethane sheath, diameter <8mm; waterproof, abrasion, acid/alkali, corrosion resistant.
3. Winding: Software-controlled automatic winding.
4. Automatic Layering: Ensures orderly cable distribution on the drum.
5. Counting: High-precision encoder, 1mm resolution.
6. Interfaces: Wireless, Ethernet.
7. Protection Rating: IP63, dust-proof, protected against water splashes.
8. Dimensions: 578mm * 372mm * 550mm.
9. Weight: 55kg (including 120m cable).

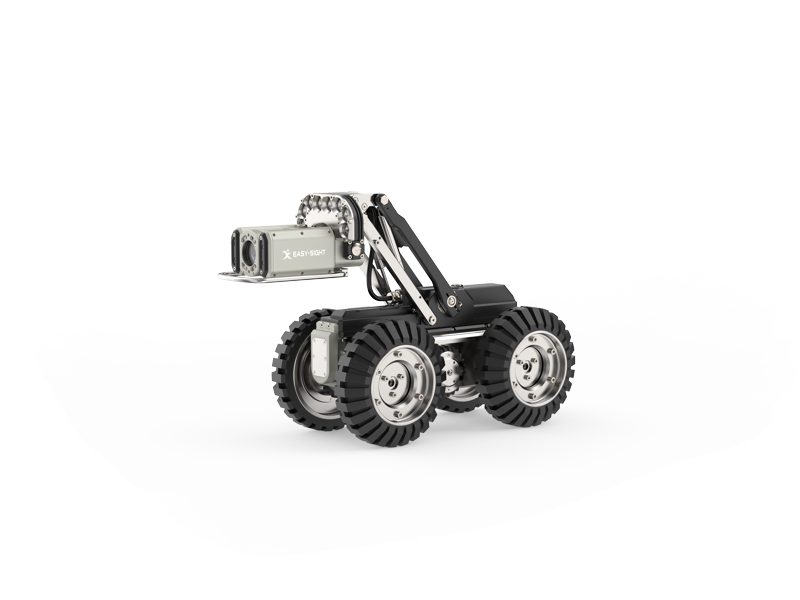

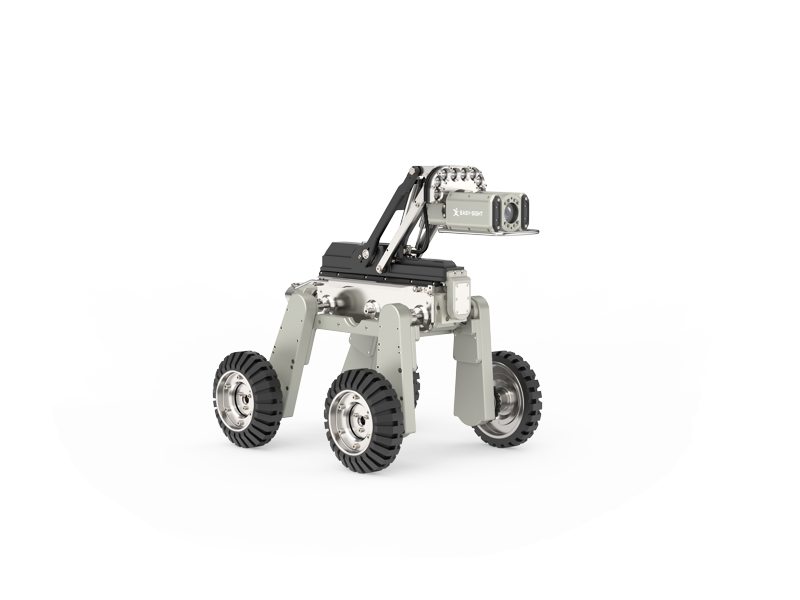

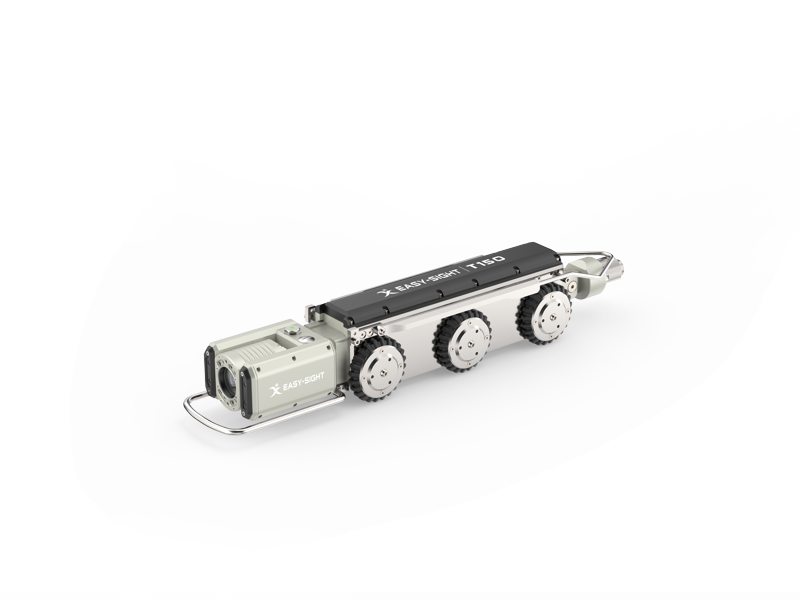

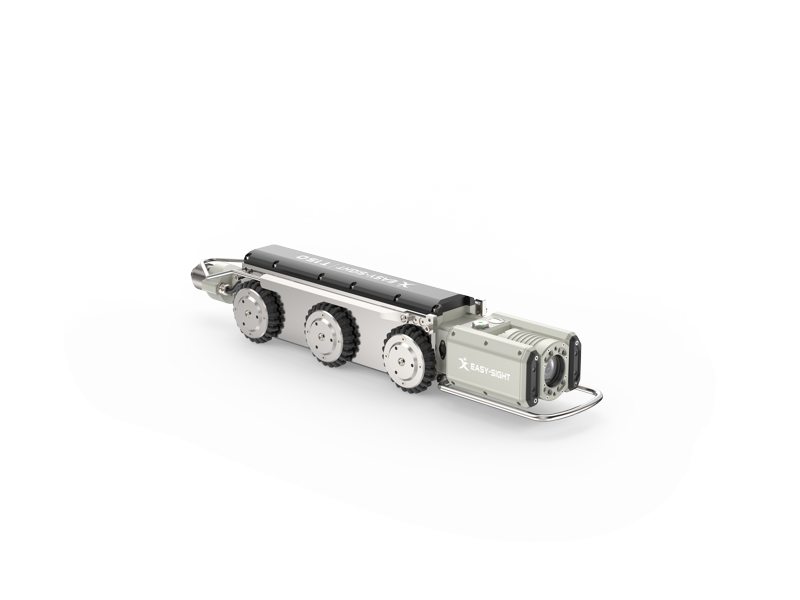

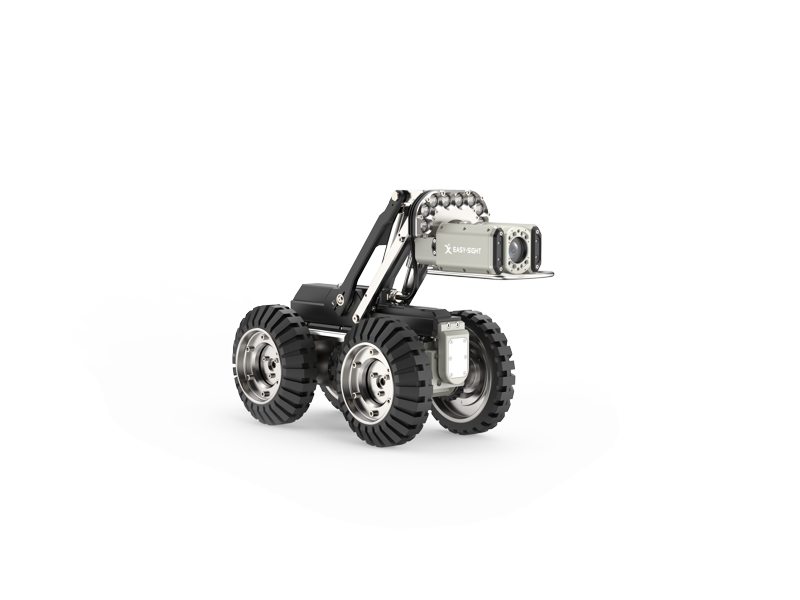

1. Suitable Pipe Diameter: ≥150mm.
2. Suitable Pipelines: Wastewater, industrial effluent, stormwater, water supply pipes.
3. Materials: Stainless steel, aluminum (anti-corrosion treated).
4. Lift Module: Motorized lift, 165mm stroke; detachable design for use without lift.
5. Drive: Dual 150W motors, 6-wheel drive, max speed 36m/min.
6. Grading Ability: Up to 45° max.
7. Circuit Protection: Auto protection against motor stall, overcurrent, overvoltage.
8. Lighting: Front - 8x10W spot LEDs; Rear - 2x10W LEDs; all continuously dimmable.
9. Rear-view Camera: For retrieval monitoring; max resolution 2MP (1920x1080).
10. Positioning: Built-in sonde (when lift module is attached).
11. Wheels: Configurable with 3-inch, 6-inch, 8-inch, 10-inch wheel sets.
12. Protection: IP68, submersible to 10m; pressure sensor with indicator.
13. Operating Temperature: -10°C to 50°C.

14. Dimensions: 760mm * 266mm * 392mm (with 8-inch wheels).
15. Weight: 25kg (with lift and 8-inch wheels).

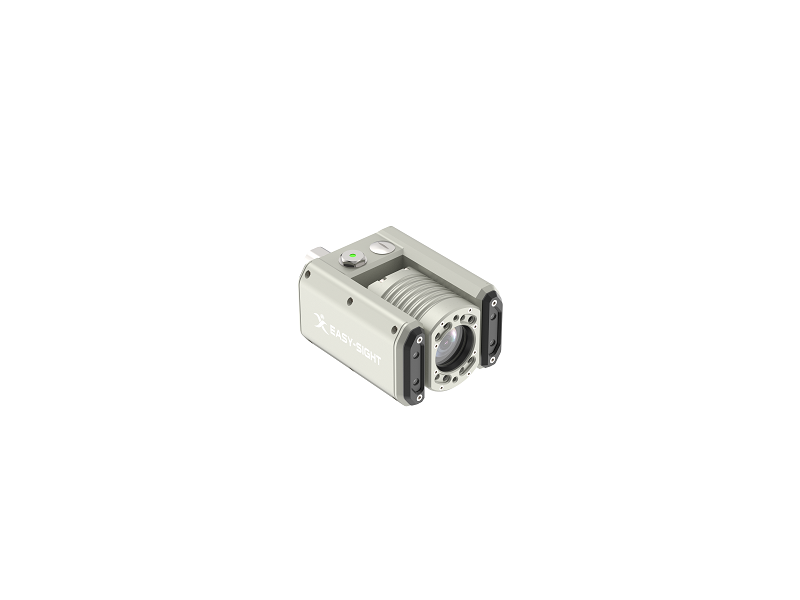

1. Suitable Pipe Diameter: ≥150mm.
2. Movement: Motorized, 360° continuous pan, ±90° tilt, one-key return.
3. Focus/Zoom: Auto/Manual focus, 10x optical zoom.
4. Imaging: Color, 1/3" 2MP CMOS, 1920x1080, 6.7°–68° FOV, 0.05Lux sensitivity.
5. Lighting: 12x1W flood LEDs.
6. Clock Reference: Indicates defect position.
7. Collision Protection: Front buffer pad.
8. Dimensions: 171mm * 105mm * 74mm.
9. Protection: IP68, submersible to 10m; pressure sensor with indicator.
10. Operating Temperature: -10°C to 50°C.
11. Weight: 1.9kg.

1. Suitable Pipe Diameter: 140–3000mm.
2. Movement: Motorized, 360° continuous pan, ±115° tilt, one-key return.
3. Focus/Zoom: Auto/Manual focus, 3x digital zoom.
4. Imaging: Color, 1/3" CMOS, 2MP, max 78° FOV, 0.01Lux sensitivity.
5. Lighting: 8x1W flood LEDs.
6. Clock Reference: Indicates defect position.
7. Dimensions: 153mm * 76mm * 62mm (for 84mm pipe).
8. Protection: IP68, submersible to 10m; pressure sensor with indicator.
9. Operating Temperature: -10°C to 55°C.
10. Weight: 1.3kg.

1. Device Management: Manage client devices; display online devices on a map.
2. Remote Viewing: Synchronized remote viewing of live inspection video.
3. Track Playback: Review equipment operation tracks.
4. Data Statistics: Analyze workload by operator, device, region, etc., for decision-making.
